3D Fence Panel
All types of 3D fence and on-demand specifications. Experienced China manufacturer exporting to 70+ countries. Get a 3D fence panel solution price today.
260+ tonsWire products output
per day
per day
3 timesQuality inspection
throughout
throughout
70+Country & region
exported
exported
CertificationsISO9001:2015 | TÜVRheinland Verified
System Overview

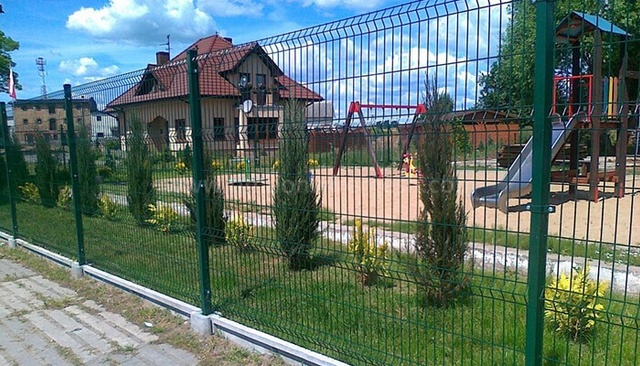

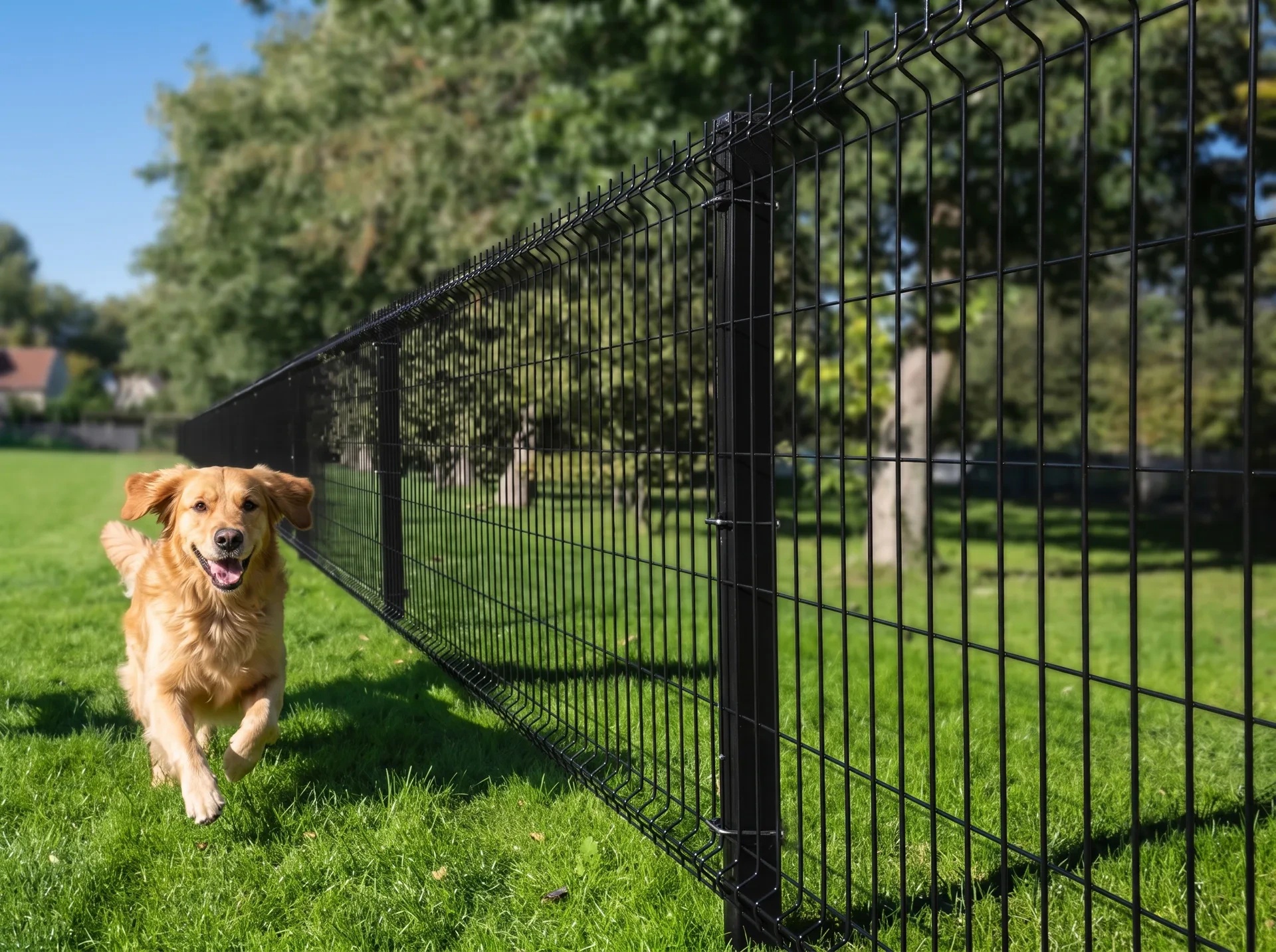

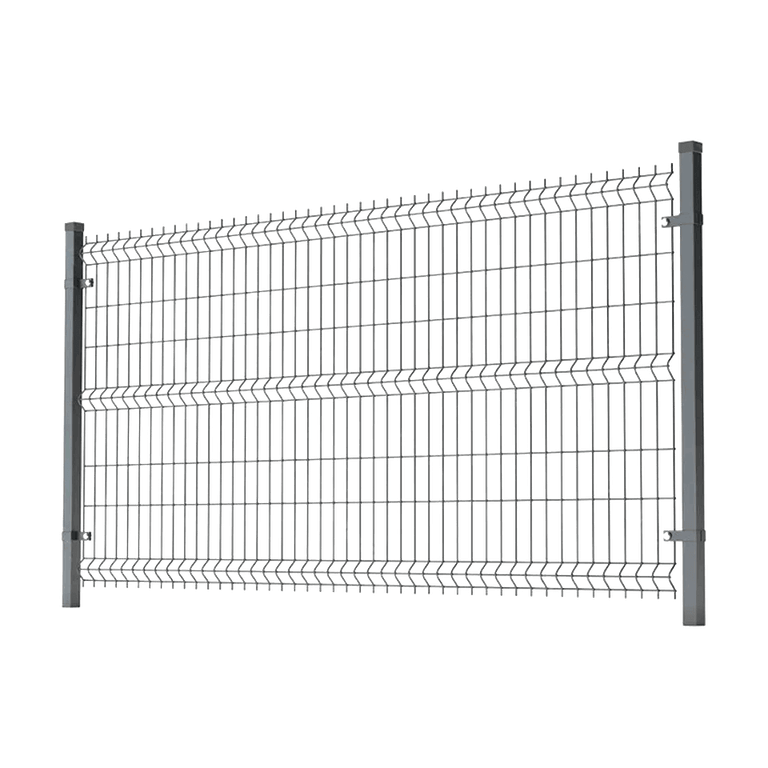

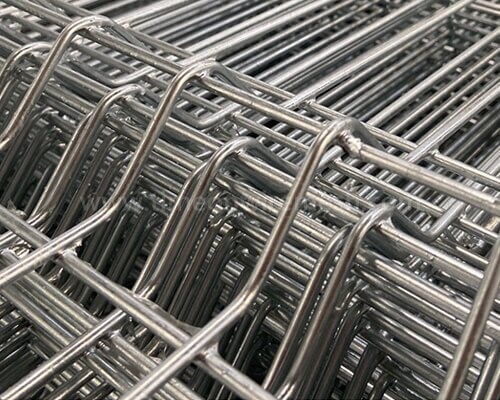

3D Curved Welded Wire Mesh Panel is an aesthetic yet secure perimeter solution designed for long-term performance. Its defining feature is the pressed horizontal V-shaped curves along the panel, which improve rigidity and strength without adding unnecessary weight. With high transparency, durability, and cost-efficiency, this system is widely used for residential, commercial, and public-area fencing projects.
- Structure:

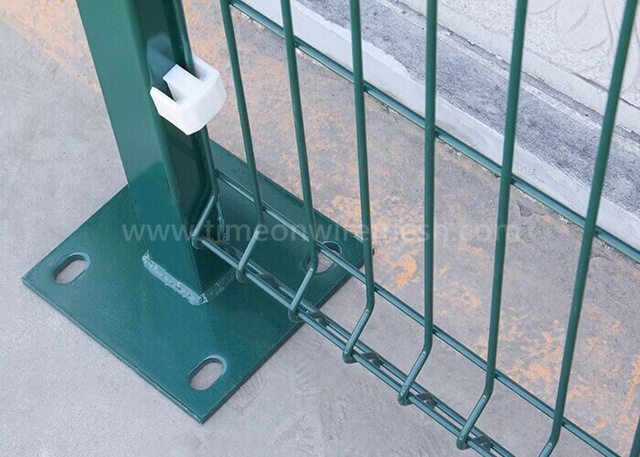

- Welded wire panels with reinforcing longitudinal V-bends, steel posts, and secure fixing clips.
- Material:
- Low-carbon steel wire or pre-galvanized steel wire.
- Finish:
- Hot-dipped galvanized, AkzoNobel polyester powder coating, or PVC coating.
- Applications:
- Residential quarters, private gardens, public parks, commercial properties, factory perimeters, school playgrounds, highways, and railway borders.
Most Required 3D Panel Fence
The most commonly used mesh size for 3D panel fences is 50x200mm, with a wire diameter of 5mm. The regular panel size is 2.5x2m. We frequently export to the Europe and America markets.

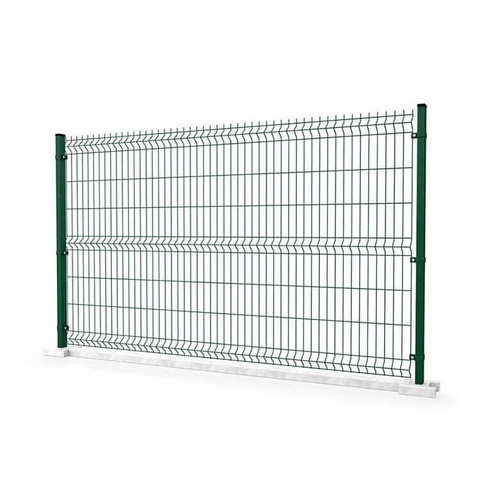

3D Fence Specifications
| Number of Curves | Panel Size | Wire Diameter (mm) | Mesh Size (mm) | |||
|---|---|---|---|---|---|---|
| Height (m) | Width (m) | Inside Wire | After PVC | After Powder Coating | ||
| 2 | 1.0 m | 2.0 m 2.5 m | 3 mm 4 mm 5 mm 6 mm | 3.8 mm 5 mm 6 mm 7 mm | 3.15 mm 4.15 mm 5.15 mm 6.15 mm | 50 x 200 55 x 200 60 x 150 75 x 100 |
| 2 | 1.2 m | |||||
| 3 | 1.5 m | |||||
| 3 | 1.7 m | |||||
| 4 | 1.8 m | |||||
| 4 | 2.0 m | |||||
| 4 | 2.2 m | |||||

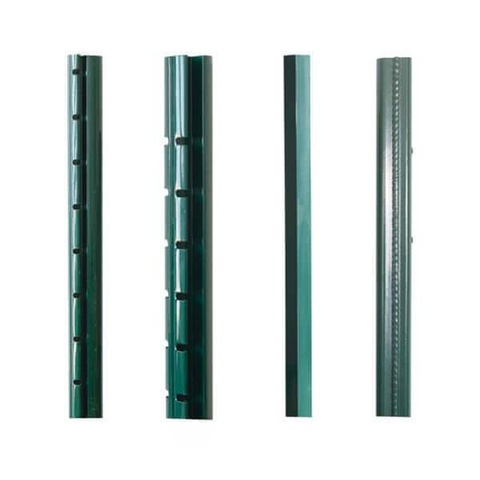

3D Fence Posts Solution
| Post Type | Post Size (mm) | Post Thickness (mm) |
|---|---|---|
| Rectangular Post | 30 x 50 mm | 1.0 - 3.0 |
| 40 x 60 | ||
| 40 x 80 | ||
| 50 x 70 | ||
| 60 x 80 | ||
| Square Post | 40 x 40 | |
| 50 x 50 | ||
| 60 x 60 | ||
| 70 x 70 | ||
| Peach Post | 50 x 70 | |
| 70 x 100 | ||
| Round Post | 38 | |
| 40 | ||
| 42 |
Visual Details
High-resolution imagery detailing product construction, installation, and real-world deployment.
Recommended Applications
Built to secure critical environments where safety and durability cannot be compromised.

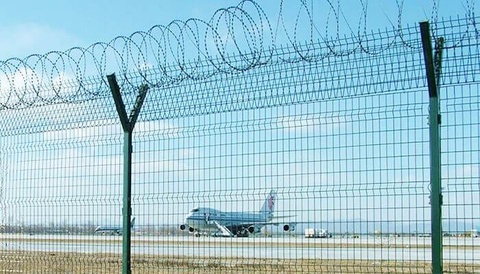

Airport & Railway Station

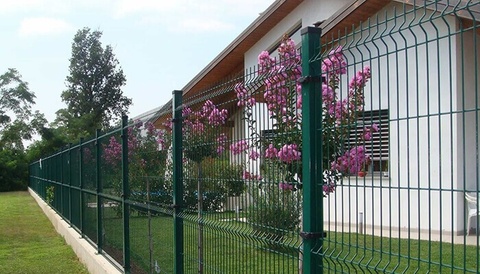

Residential Fence

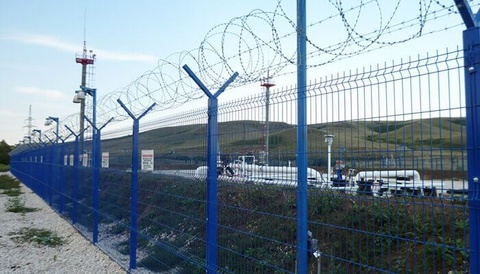

Warehouse Protection Fence
