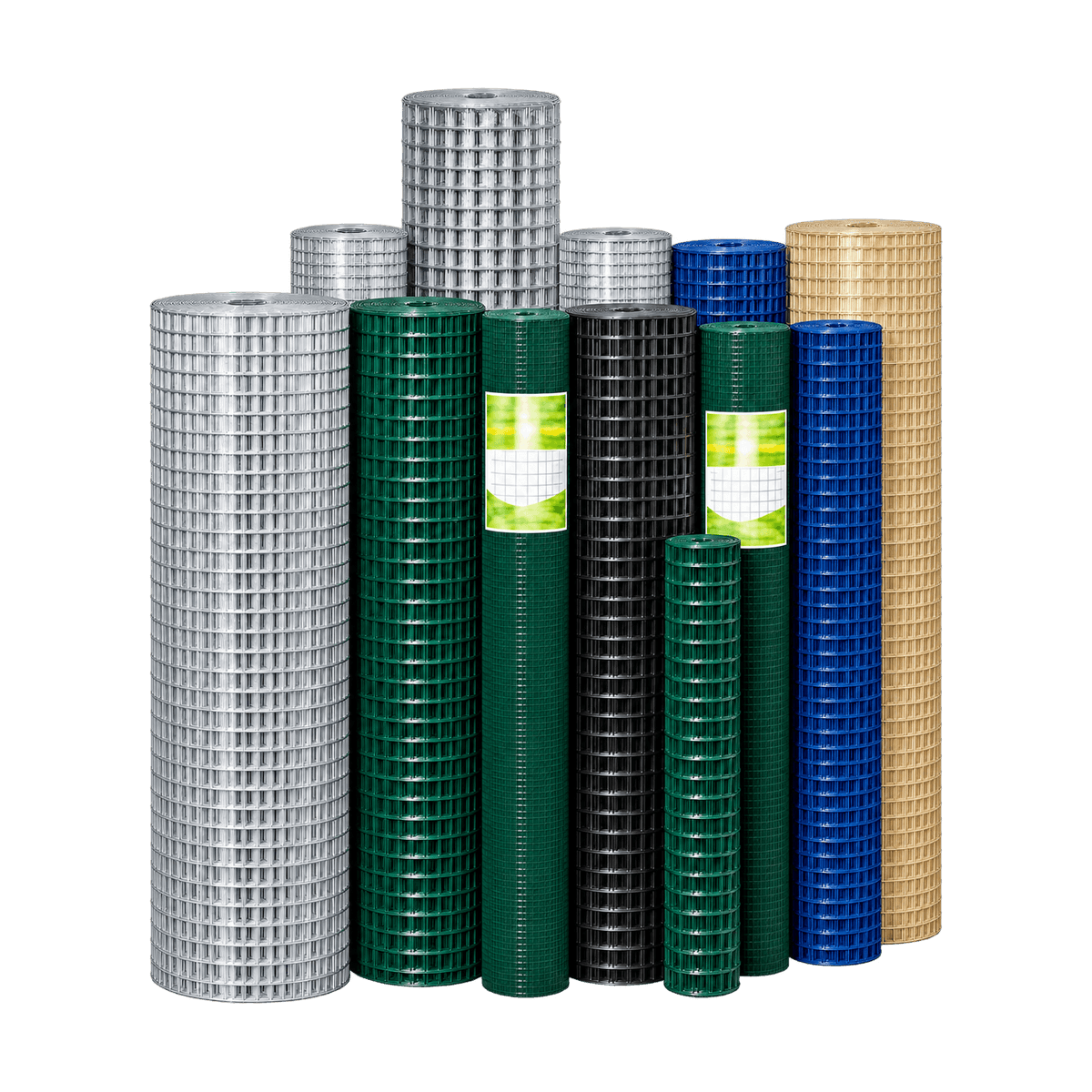

Welded Wire Mesh
TIMEON supplies welded wire mesh rolls for wholesale and international trade, combining consistent quality, competitive pricing, and flexible supply solutions for different brands and markets.
260+ tonsWire products output
per day
per day
3 timesQuality inspection
throughout
throughout
70+Country & region
exported
exported
CertificationsISO9001:2015 | TÜVRheinland Verified

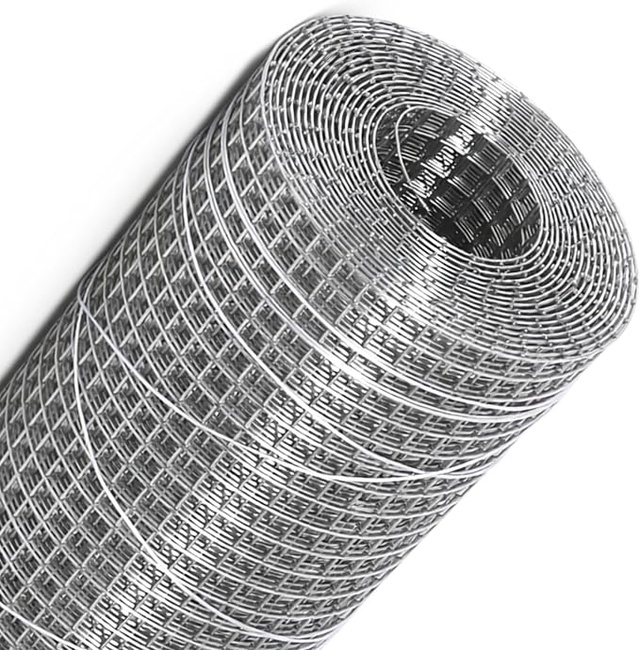

System Overview
Galvanized welded wire mesh is manufactured from steel wire welded into uniform square openings, followed by galvanizing for improved corrosion resistance and durability. It is widely used in construction, reinforcement, fencing, partitions, shelving, cages, and other industrial or agricultural applications. Compared with untreated welded mesh, galvanized welded wire mesh provides better resistance to rust and corrosion while maintaining strong welded joints and a stable mesh structure.
- Structure:
- Welded steel wire with uniform square openings
- Material:
- Steel wire
- Finish:
- Hot-dip galvanized, electro galvanized, PVC coated, painted, or untreated
- Applications:
- Construction, reinforcement, fencing, partitions, agriculture, and industrial protection

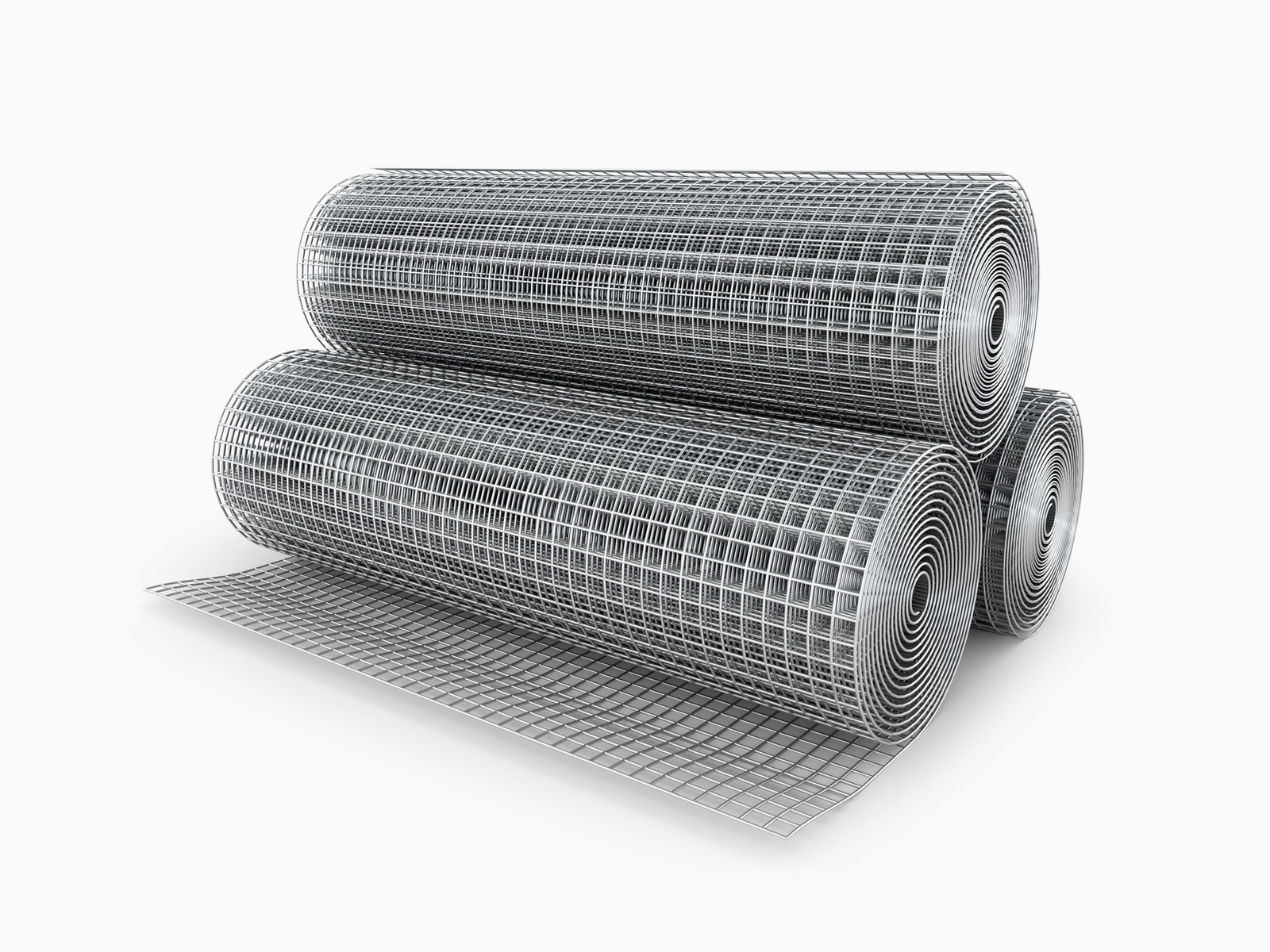

Specifications
Welded Wire Mesh is available in various opening sizes and wire gauges for different industrial, agricultural, construction, and fencing applications. Specifications can be selected according to the required mesh size, strength, and end use.
Welded Wire Mesh Specifications
| Opening (inch) | Opening (mm) | Wire Gauge (BWG) |
|---|---|---|
| 1/4" × 1/4" | 6.4mm × 6.4mm | 22, 23, 24 |
| 3/8" × 3/8" | 10.6mm × 10.6mm | 19, 20, 21, 22 |
| 1/2" × 1/2" | 12.7mm × 12.7mm | 16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" × 5/8" | 16mm × 16mm | 18, 19, 20, 21 |
| 3/4" × 3/4" | 19.1mm × 19.1mm | 16, 17, 18, 19, 20, 21 |
| 1" × 1/2" | 25.4mm × 12.7mm | 16, 17, 18, 19, 20, 21 |
| 1-1/2" × 1-1/2" | 38mm × 38mm | 14, 15, 16, 17, 18, 19 |
| 1" × 2" | 25.4mm × 50.8mm | 14, 15, 16 |
| 2" × 2" | 50.8mm × 50.8mm | 12, 13, 14, 15 |
| 2" × 4" | 50.8mm × 101.6mm | 12, 13, 14, 15 |
| 4" × 4" | 101.6mm × 101.6mm | 12, 13, 14, 15 |
| 4" × 6" | 101.6mm × 152.4mm | 12, 13, 14, 15 |
| 6" × 6" | 152.4mm × 152.4mm | 12, 13, 14, 15 |
| 6" × 8" | 152.4mm × 203.2mm | 12, 13, 14 |

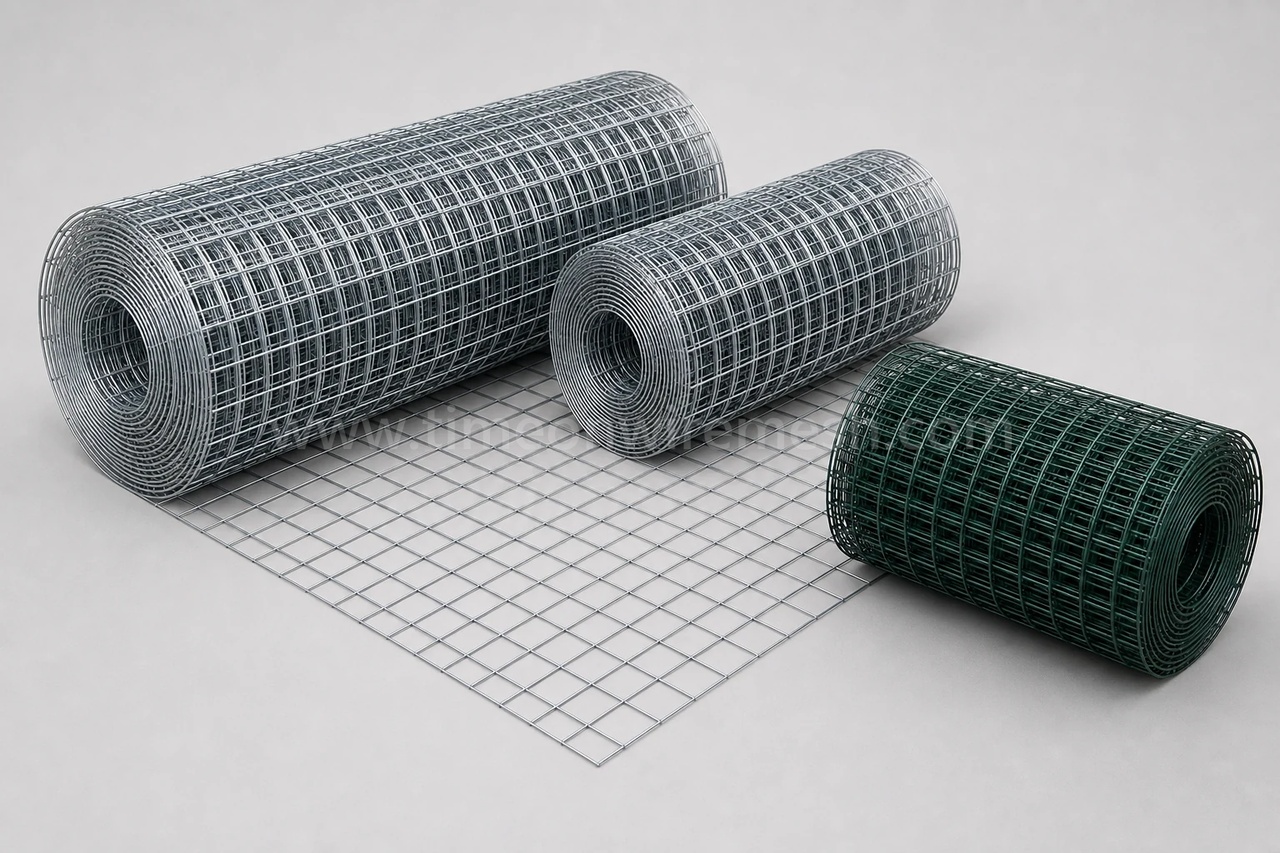

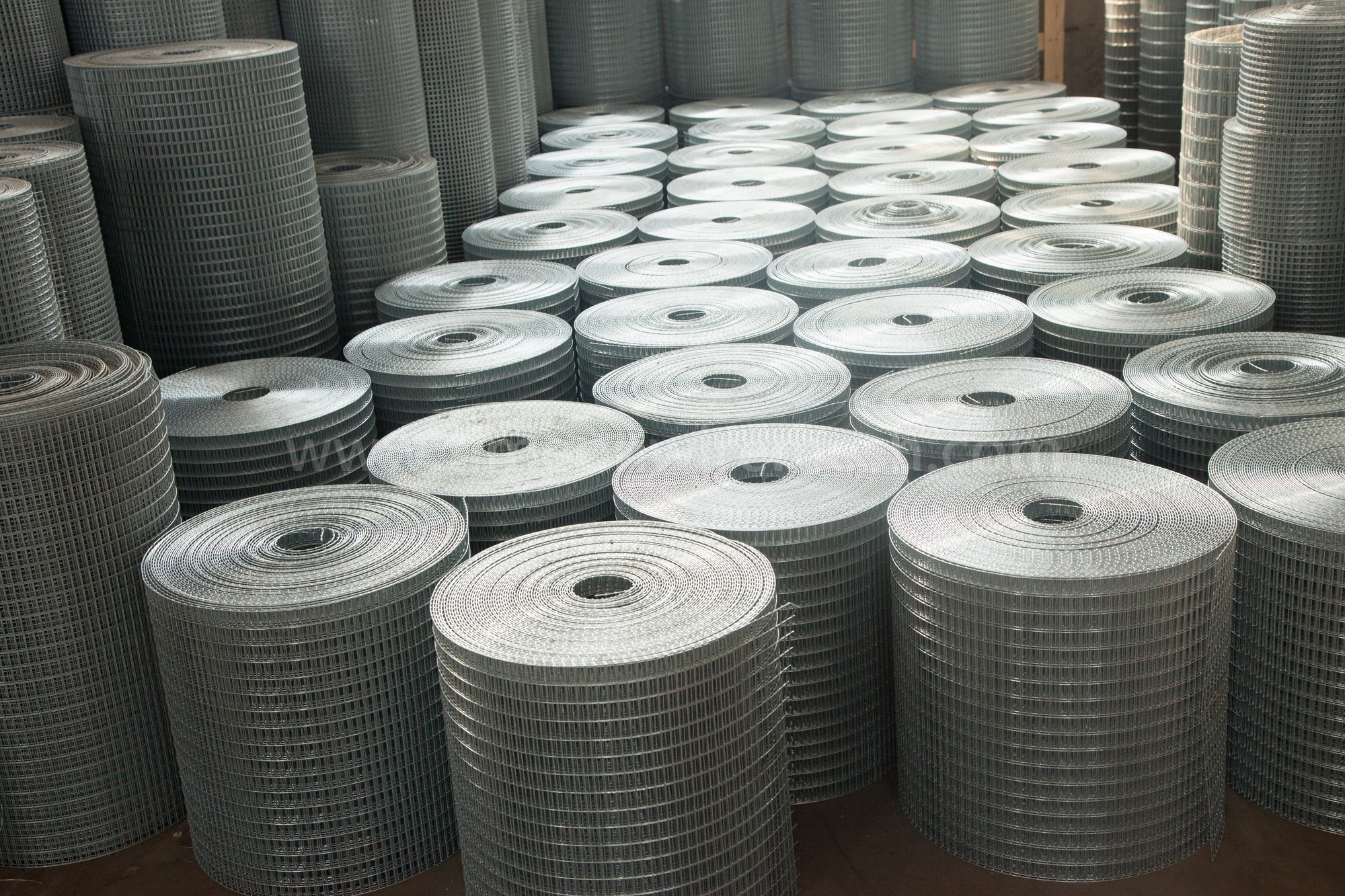

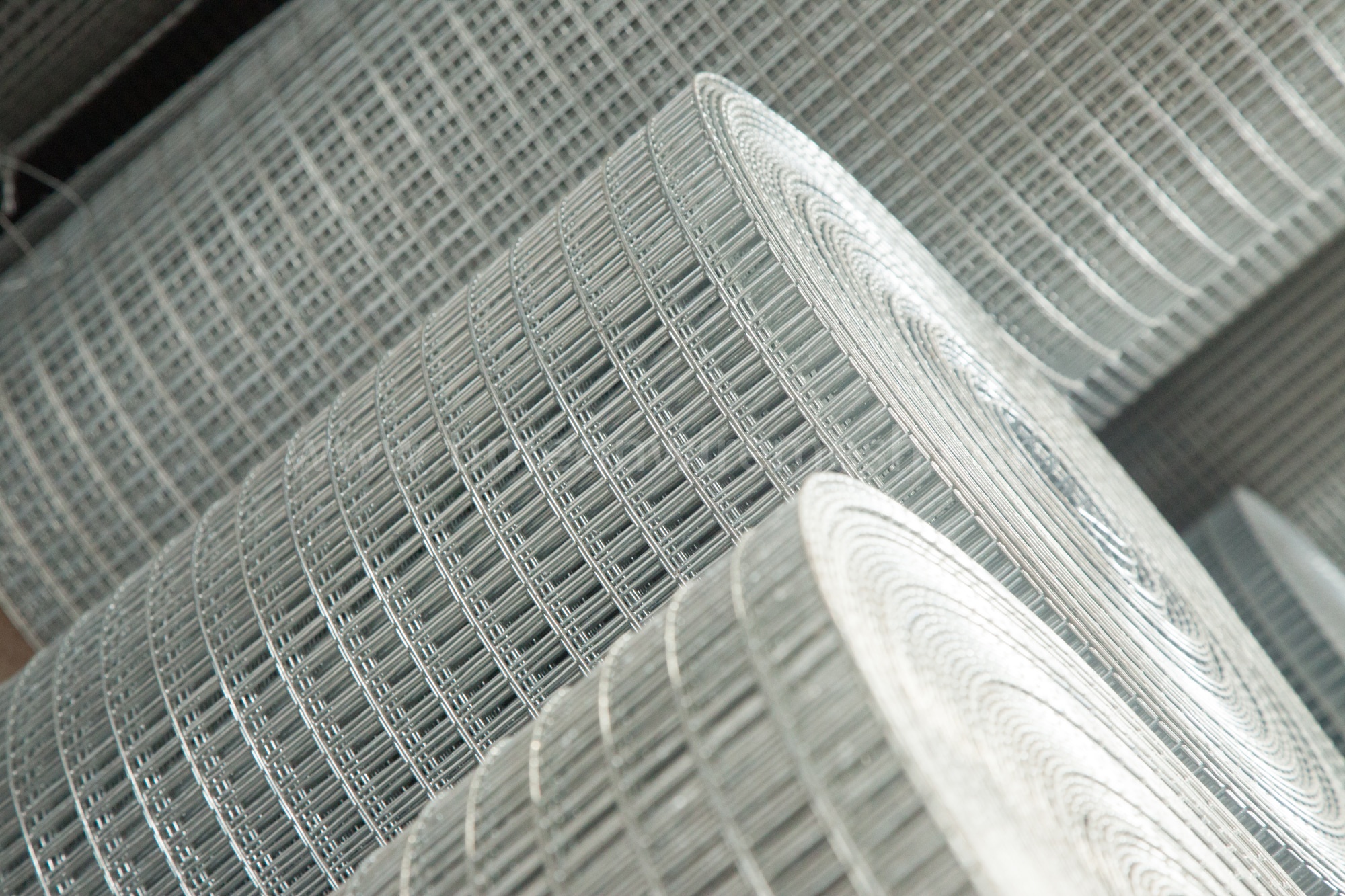

Visual Details

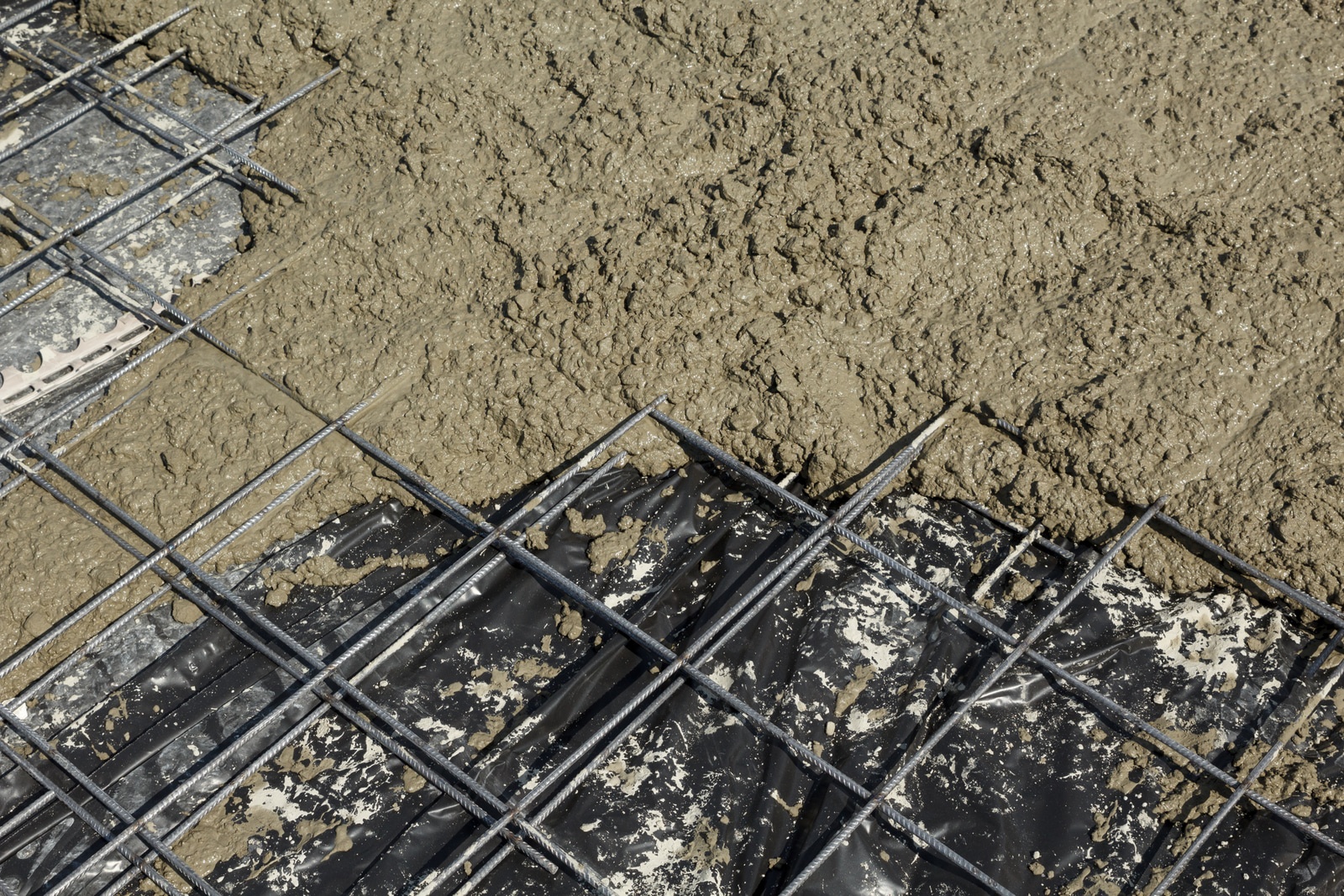

Recommended Applications

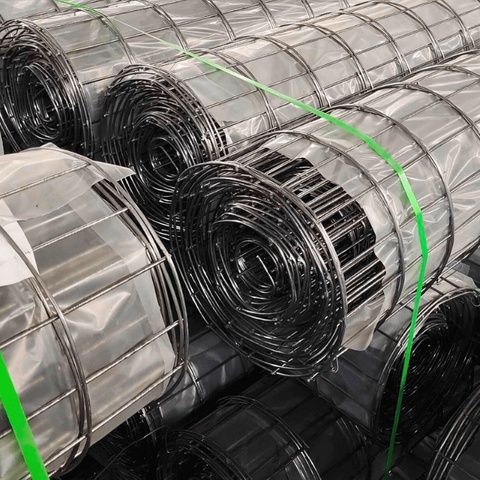

BRC Mesh Roll

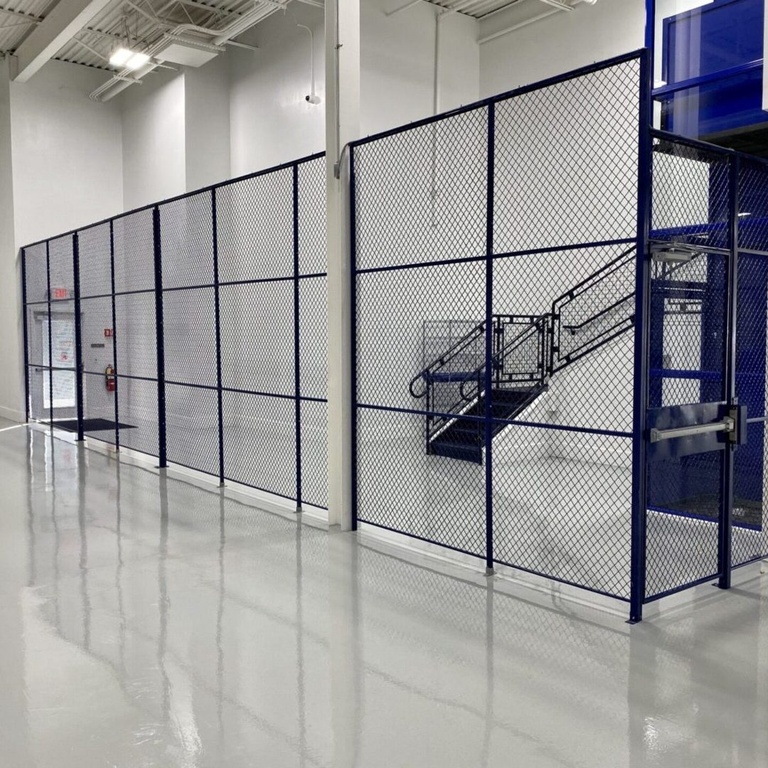

Fence Panels

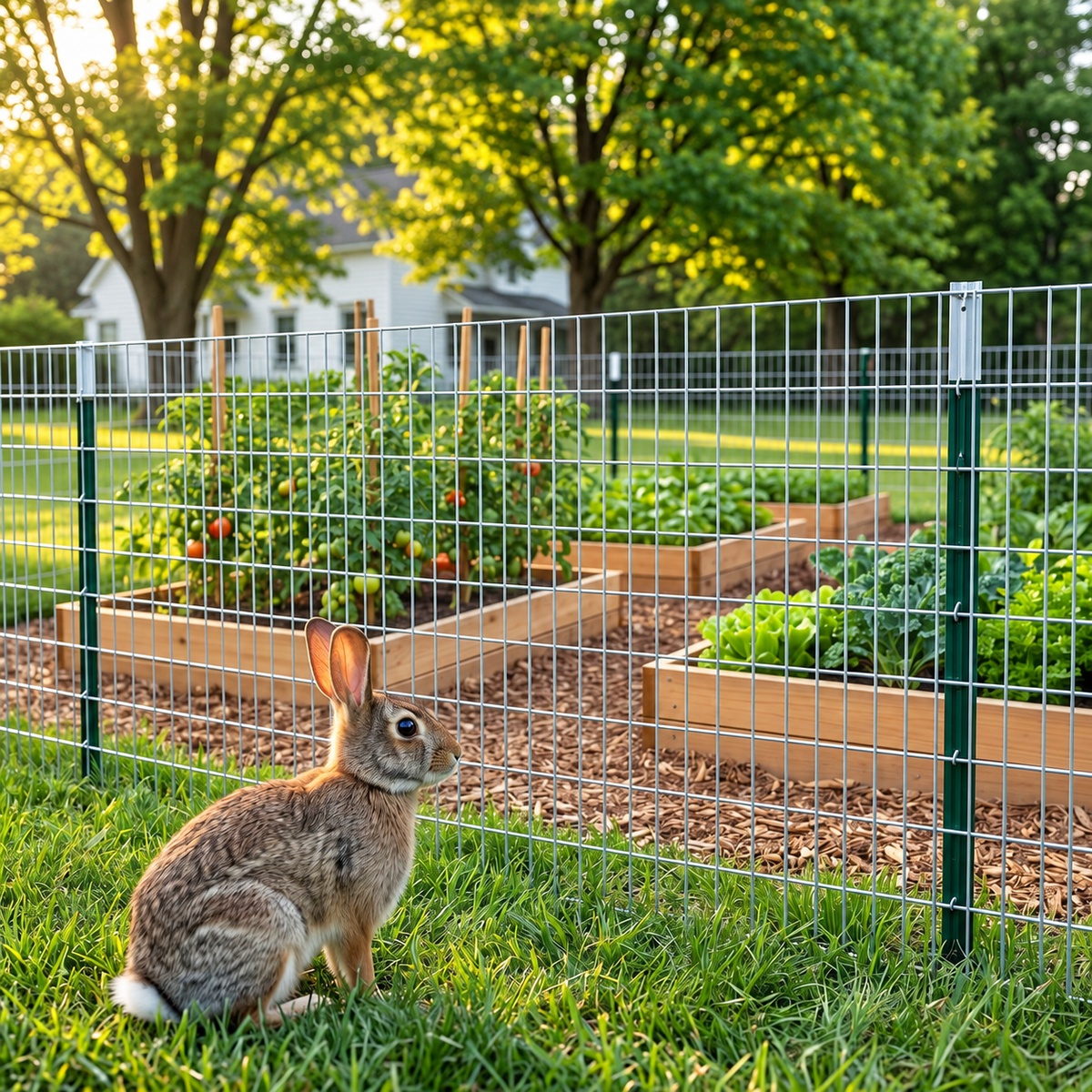

Poultry Enclosures
Recommended Products
Recommended Products
Explore related solutions for similar applications and project requirements.
Manufacturing Capacity
Our manufacturing base is located in Anping County, Hengshui City, Hebei Province, China, a globally recognized center for wire mesh production.
MANUFACTURING BASE
100,000m²
ANPING COUNTY, HEBEI, CHINA
Advanced manufacturing equipment and experienced technical teams support standard product supply and project-based customization.
EXPERIENCE
20+YEARS
EXPORT EXPERIENCE
Supporting projects across global markets.
WORKFORCE
200+EMPLOYEES
SKILLED WORKFORCE
Production, inspection and delivery teams.
Coordinated Global
Delivery
TIMEON coordinates packing, documentation and international delivery for fence, wire mesh and iron wire orders, helping shipments move clearly and efficiently from factory to destination.
01
Shipping Coordination
Packing, documentation and shipping terms are organized around each order and destination.
02
Remote Technical Support
Installation guides and remote product support are available for customers and local teams.
