01

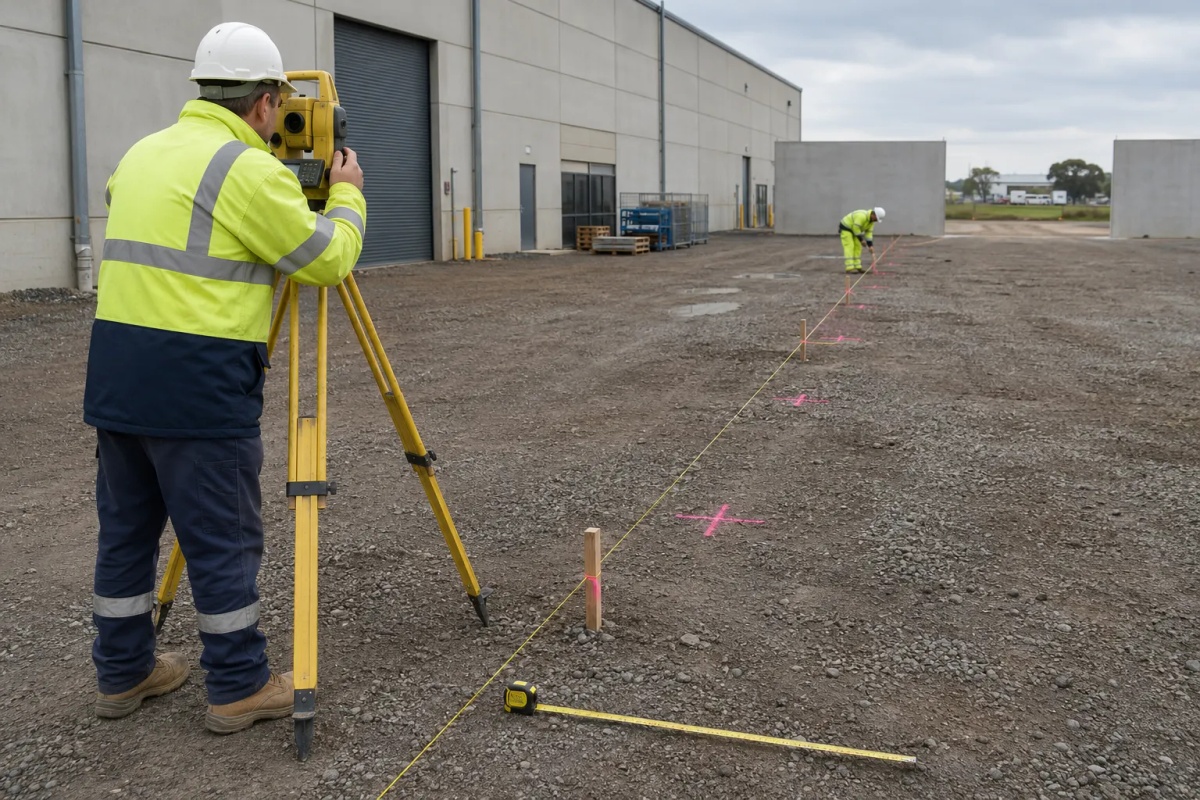

Set Out the Line
- Confirm datum and corner points
- Mark post centerlines
- Allow for gate openings
Installation Guide
A perimeter's reliability depends on precise assembly. Follow this sequence checklist to ensure perfect alignment, correct torque lockups, and complete physical integrity.
From line to handover

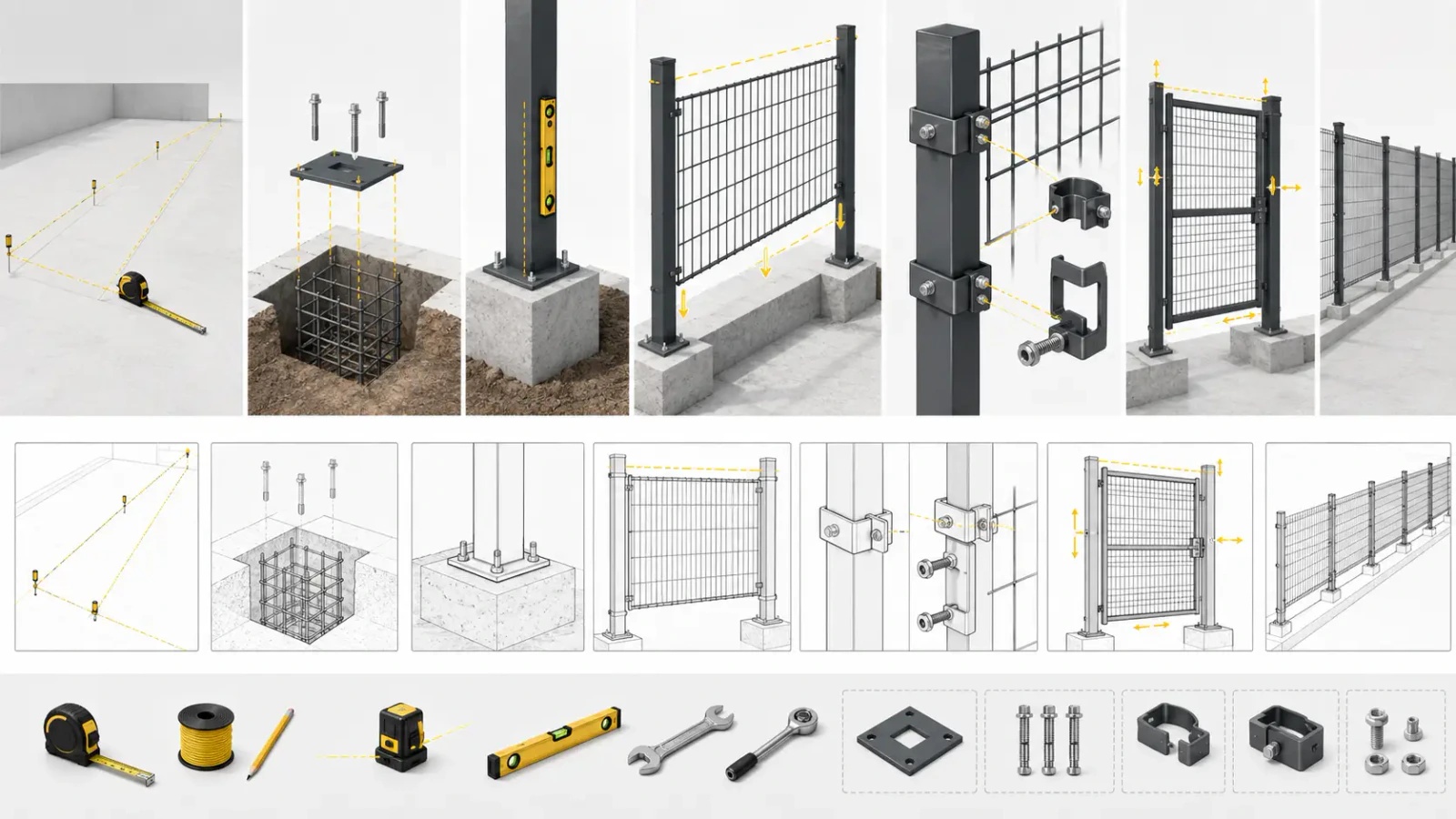

Installation Workflow Overview
Work through the sequence in order so every post, panel and gate is checked against the same line, level and load assumptions.
02

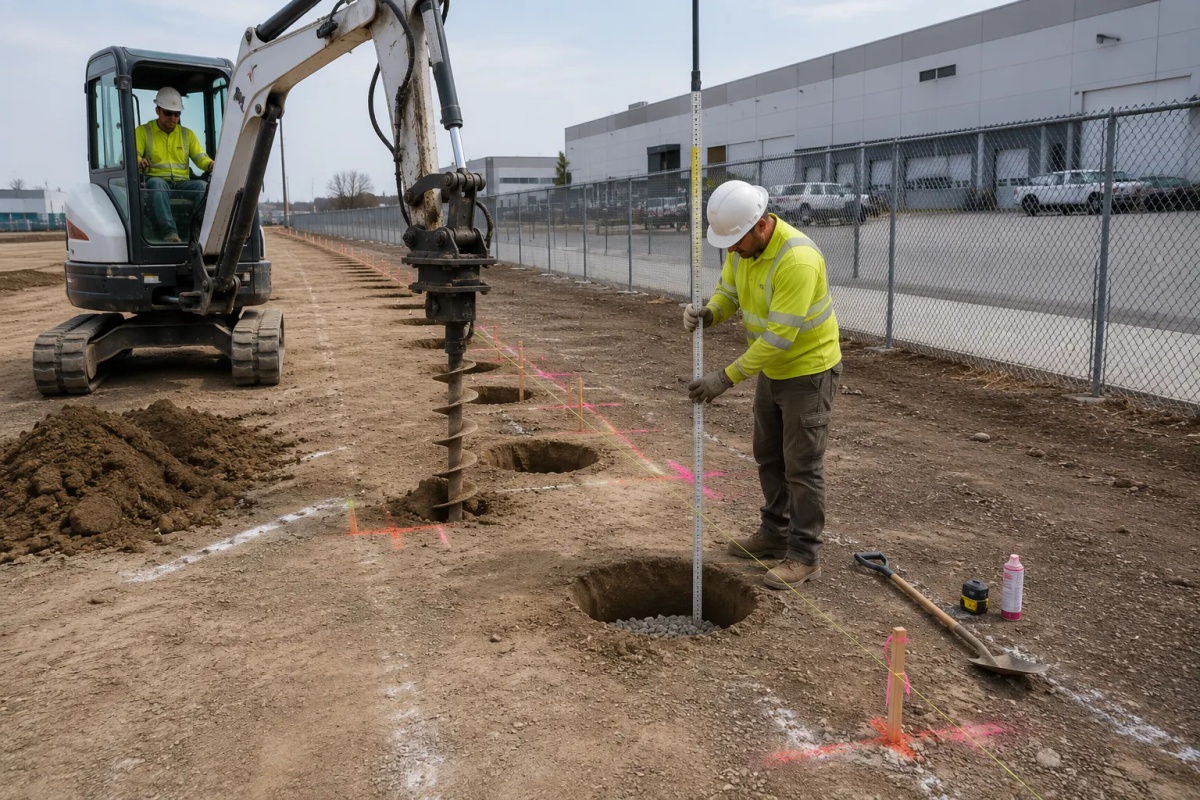

Prepare Foundations
- Clear underground service risks
- Verify hole depth
- Prepare drainage and concrete footings
03

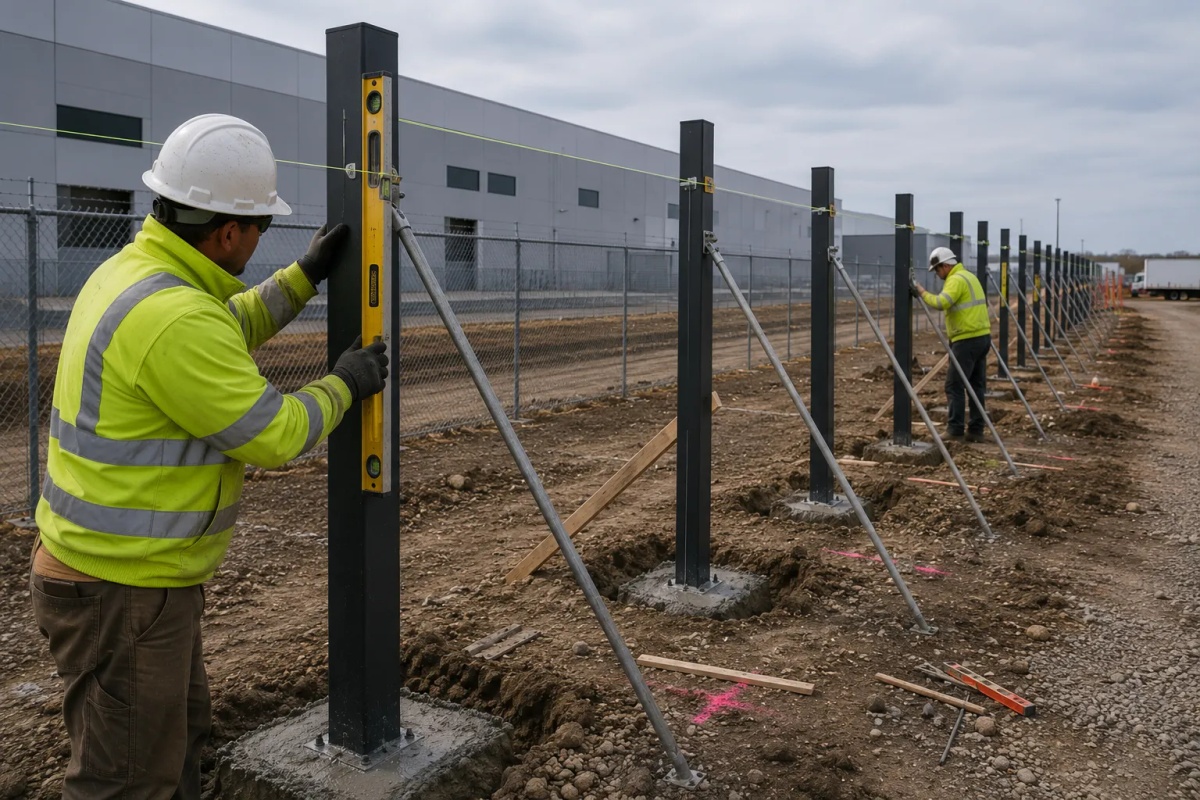

Plumb Posts
- Check plumb on both axes
- Install temporary bracing
- Hold alignment while concrete cures
04

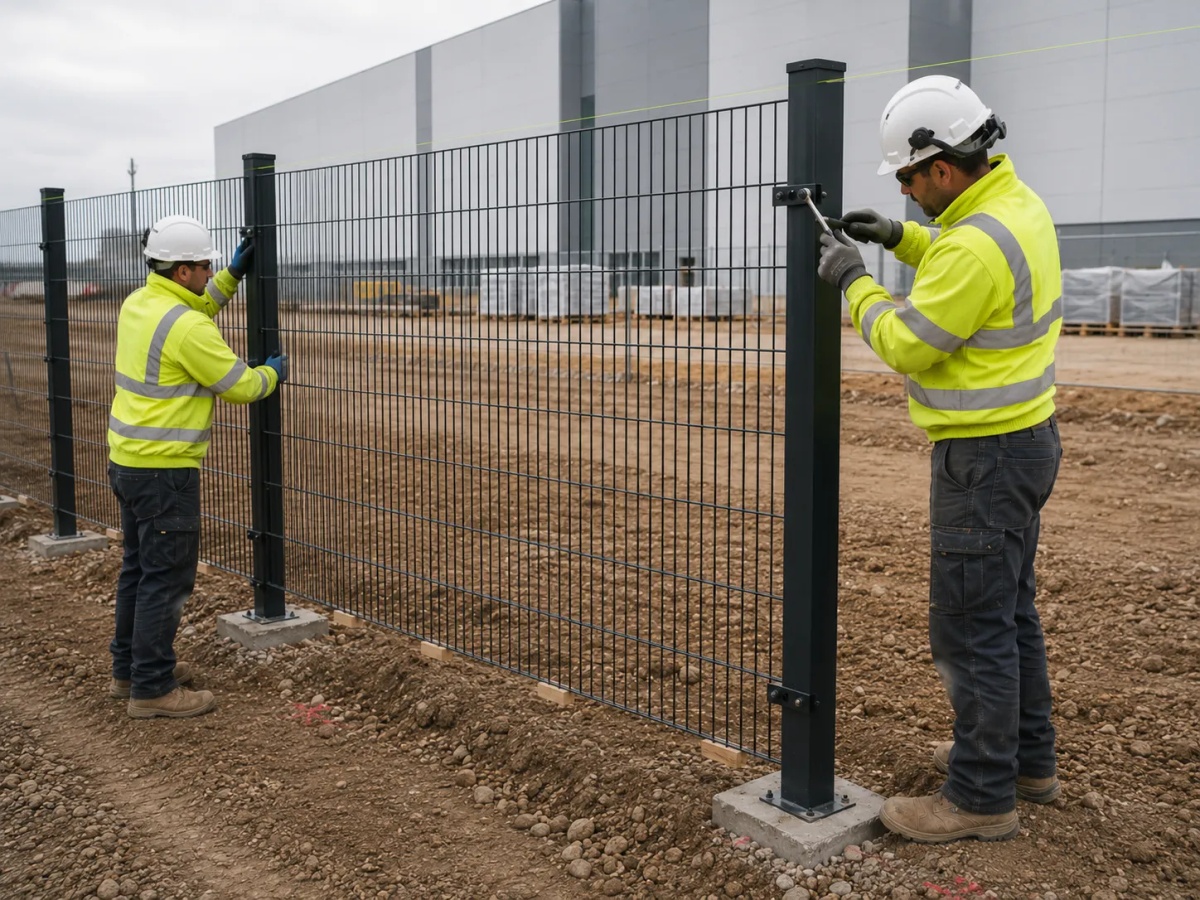

Fix Panels
- Maintain the specified ground clearance
- Fit clamps and anti-tamper fixings correctly
- Keep the fence line straight
05

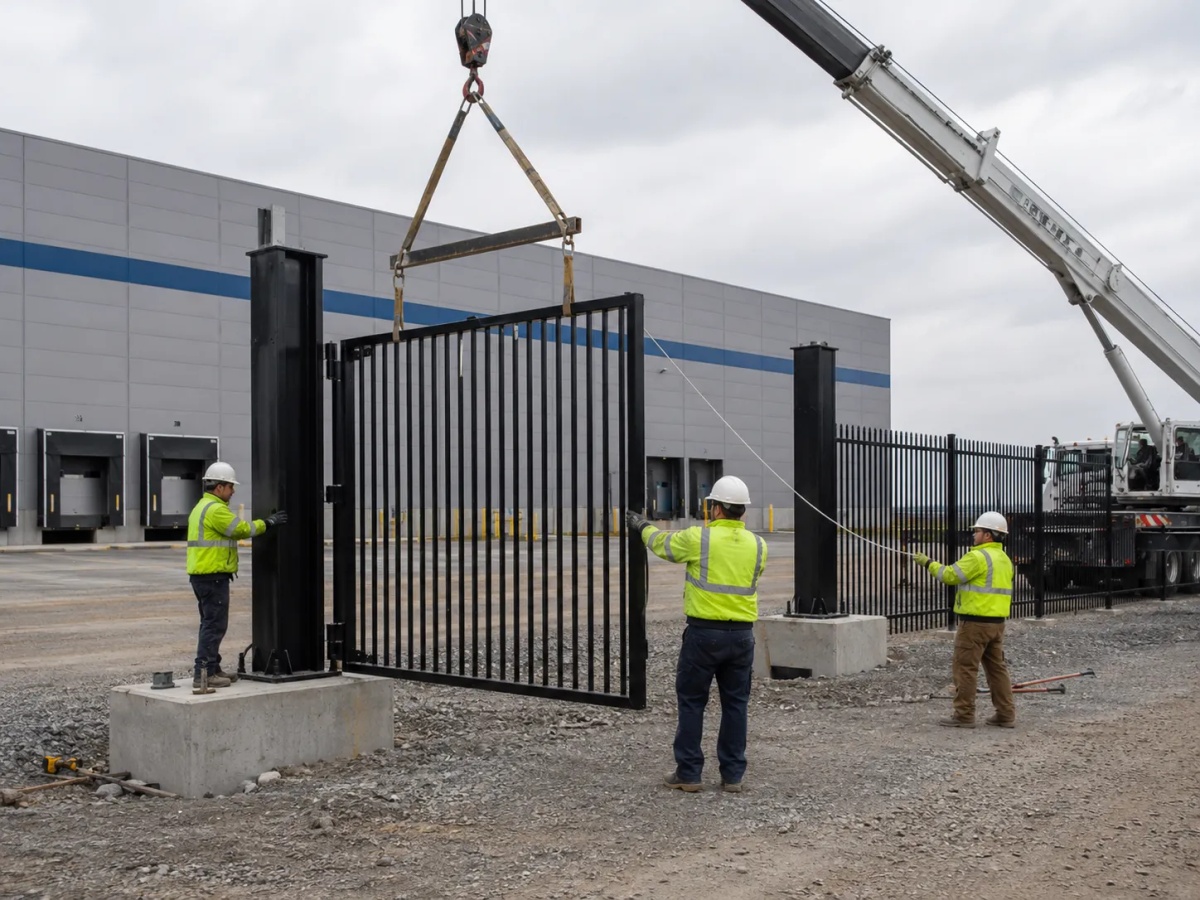

Install Gates
- Reinforce gate posts
- Verify operating clearances
- Align hinges and latches
06

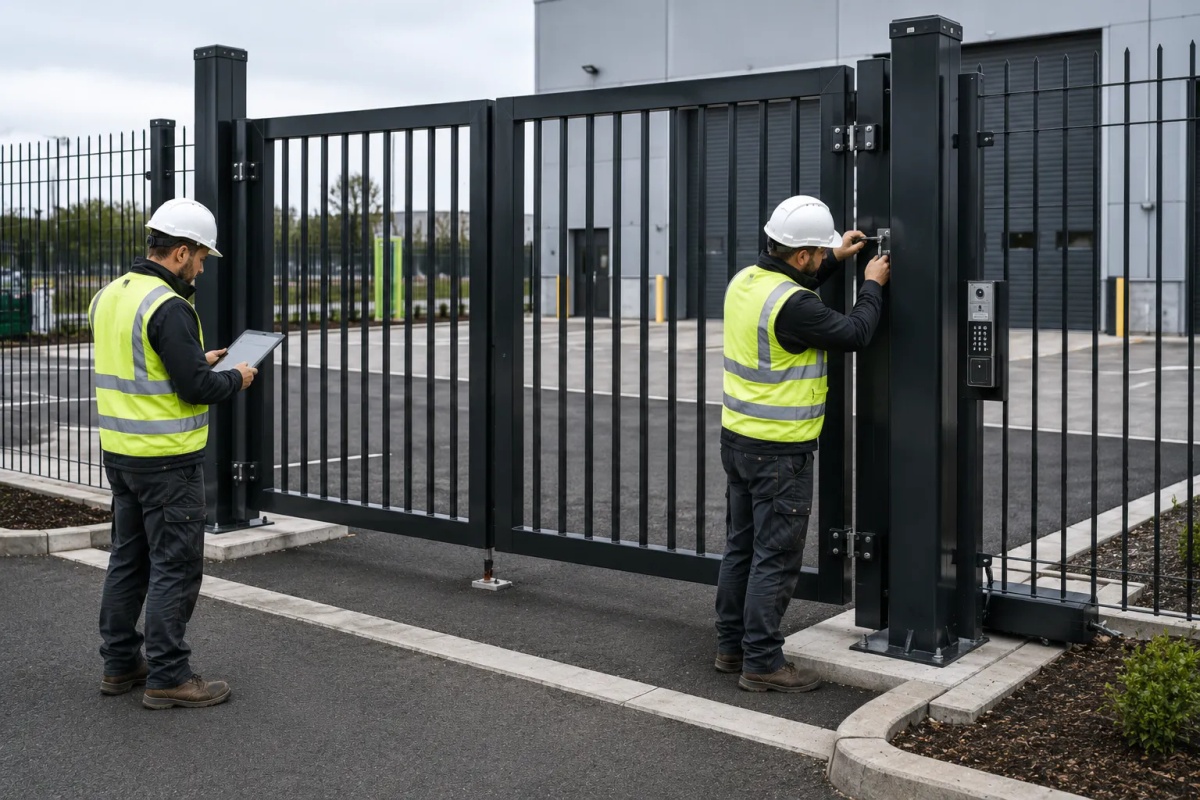

Handover Check
- Inspect all fasteners
- Repair surface damage
- Complete photographic and acceptance records
Choose the right support
Foundation, Post & Gate Decisions
Select the installation method according to ground conditions, fence height, wind load and gate load, rather than relying on site convention alone.

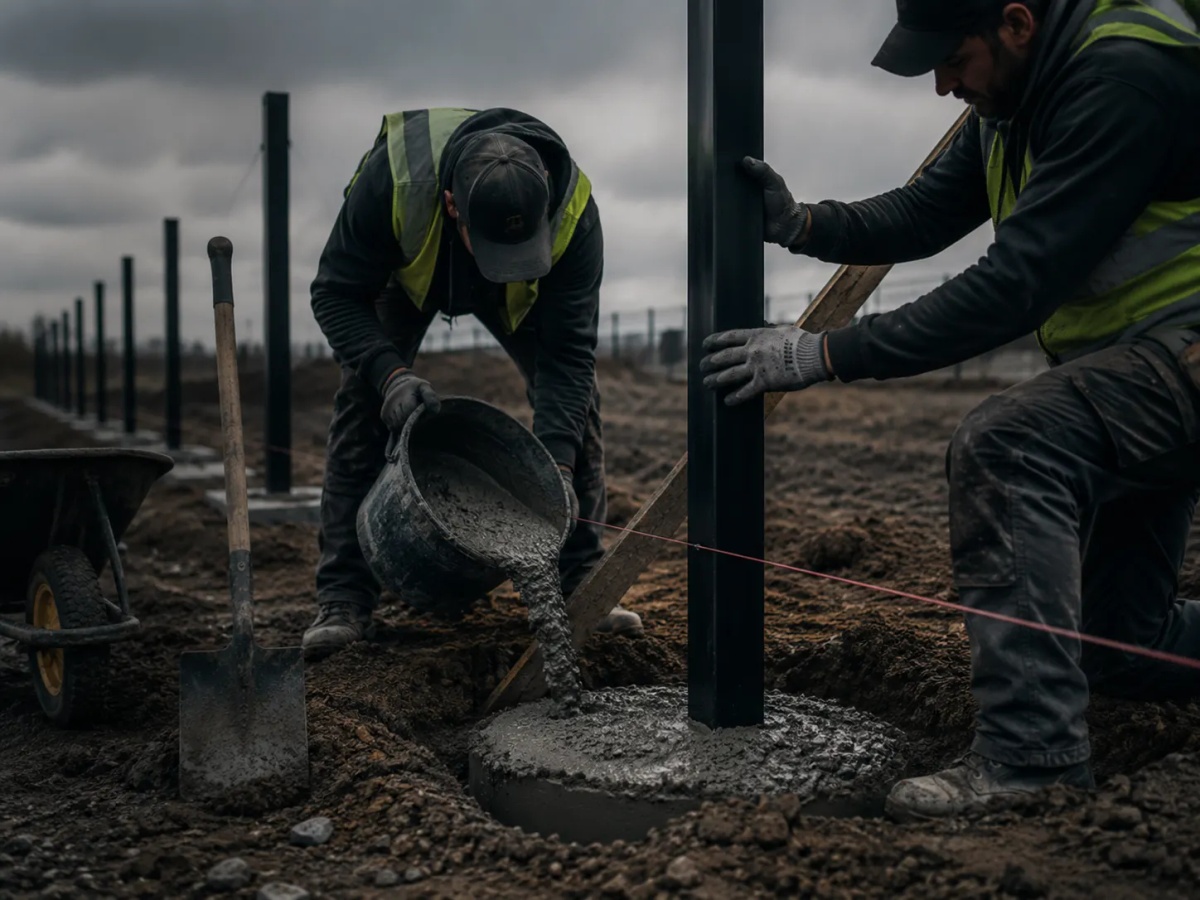

Embedded Concrete Footing
Suitable foropen soilfieldslong perimeter runs
Deep footings suit continuous fence runs and provide stable resistance to wind and impact loads.

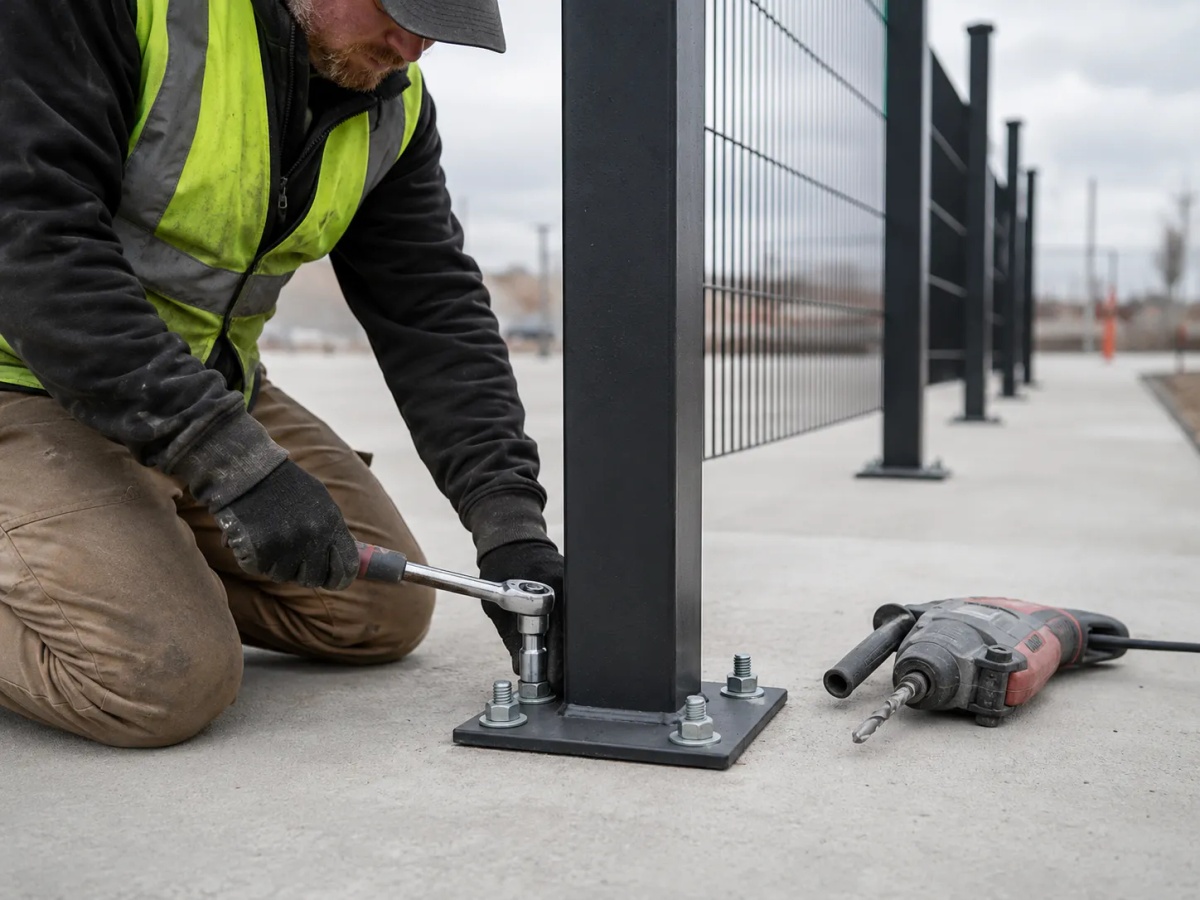

Base Plate on Slab
Suitable forconcrete yardswall topsretrofit projects
For installation on existing concrete, verify slab strength, anchor spacing and edge distances.

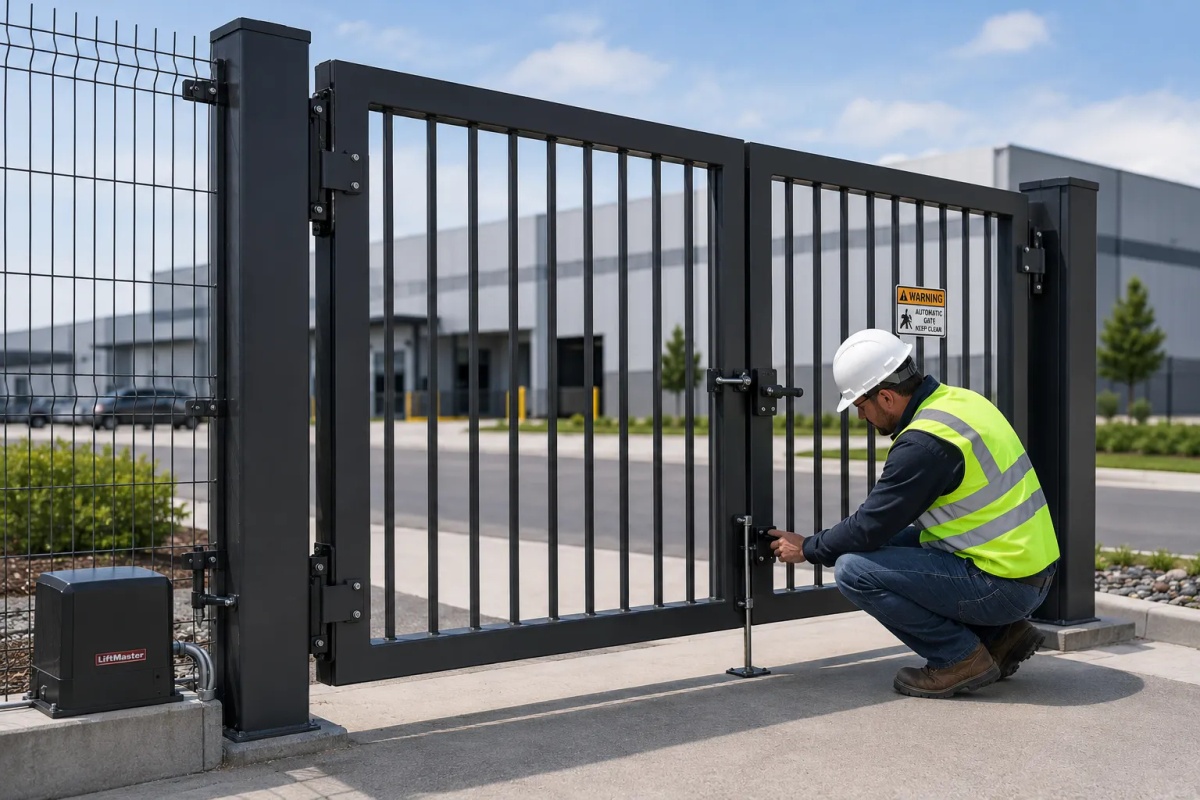

Gate Interface
Suitable forswing gatessliding gatescantilever gates
Treat each gate post as an independent load-bearing structure with stable interfaces for movement, hinges and latches.
Field control points
Common Installation Mistakes to Avoid
Turn commonly overlooked site risks into practical inspection steps before they affect the installation.
01

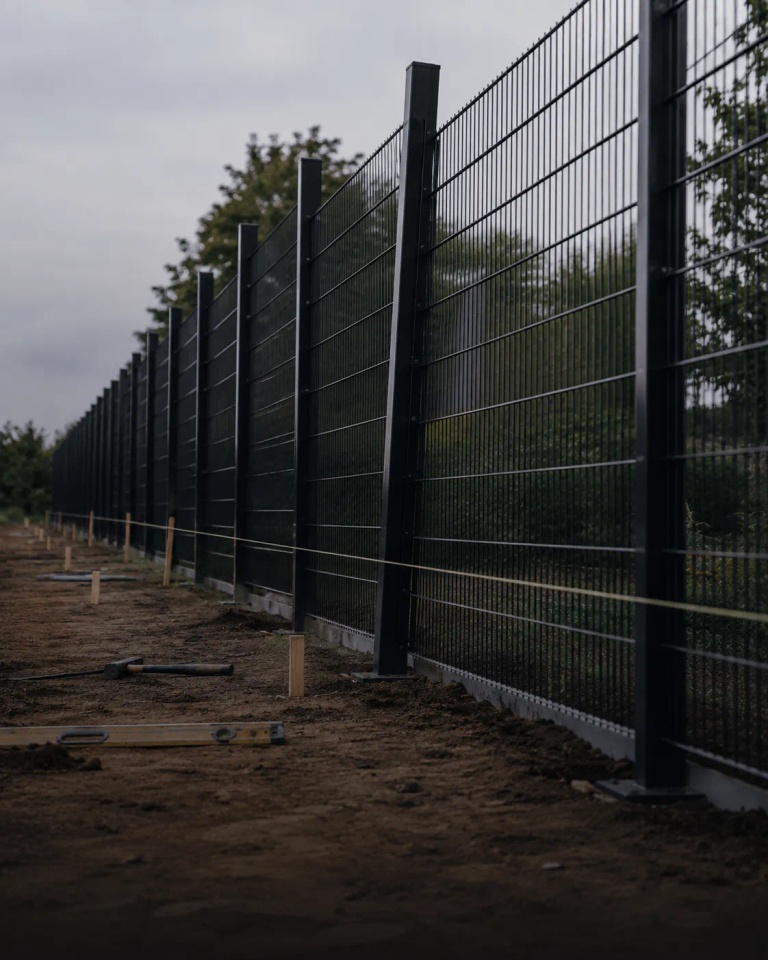

Line Drift
ProblemSmall setting-out errors multiply across long fence runs.
Control Point
Fix the datum and corner points before excavation begins.
02

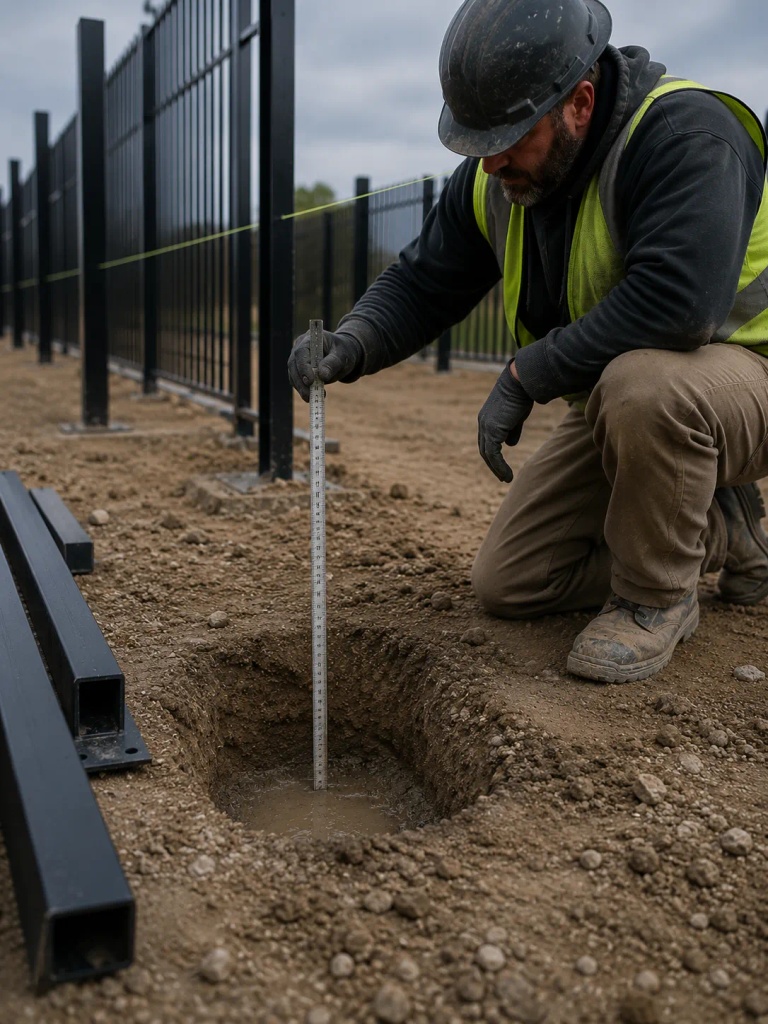

Weak Footing
ProblemInsufficient hole depth or poor foundation preparation reduces resistance to wind and impact loads.
Control Point
Verify hole depth and ensure the bearing surface is clean and stable.
03

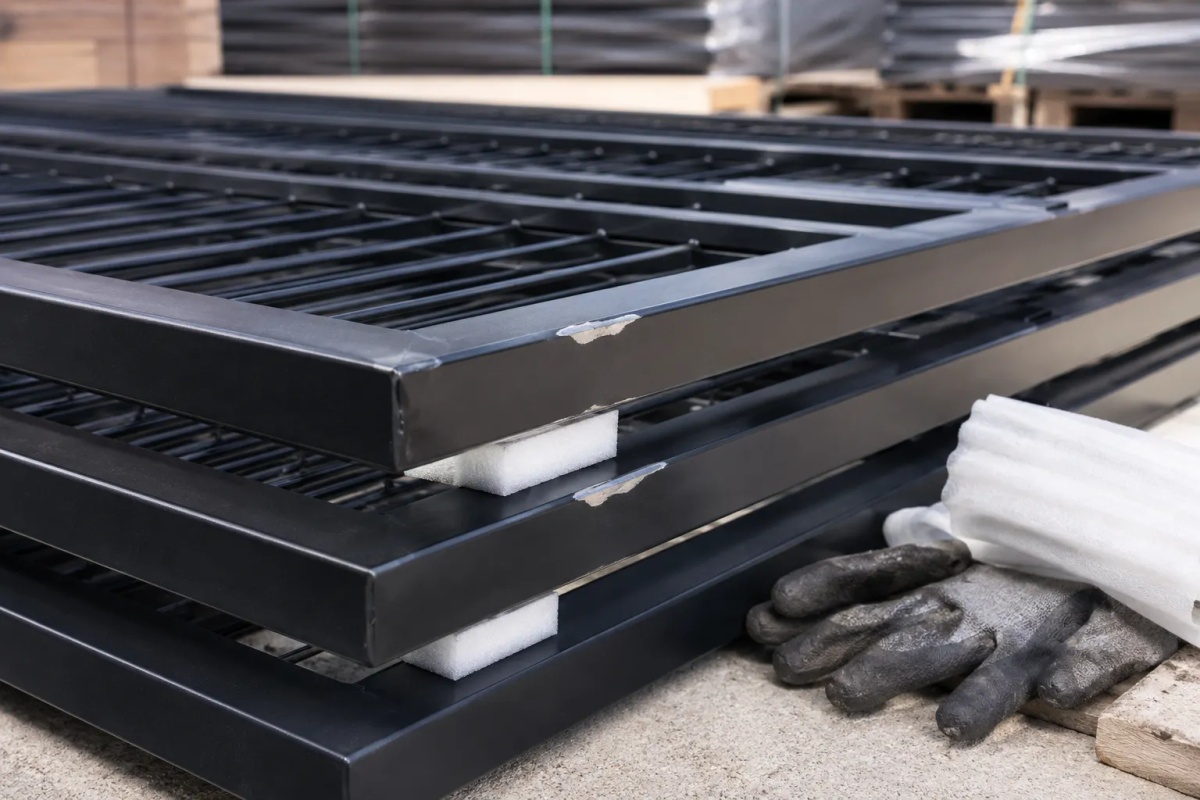

Coating Damage
ProblemDragging components or cutting on site can damage the protective coating.
Control Point
Protect components during installation and repair exposed steel immediately.
04

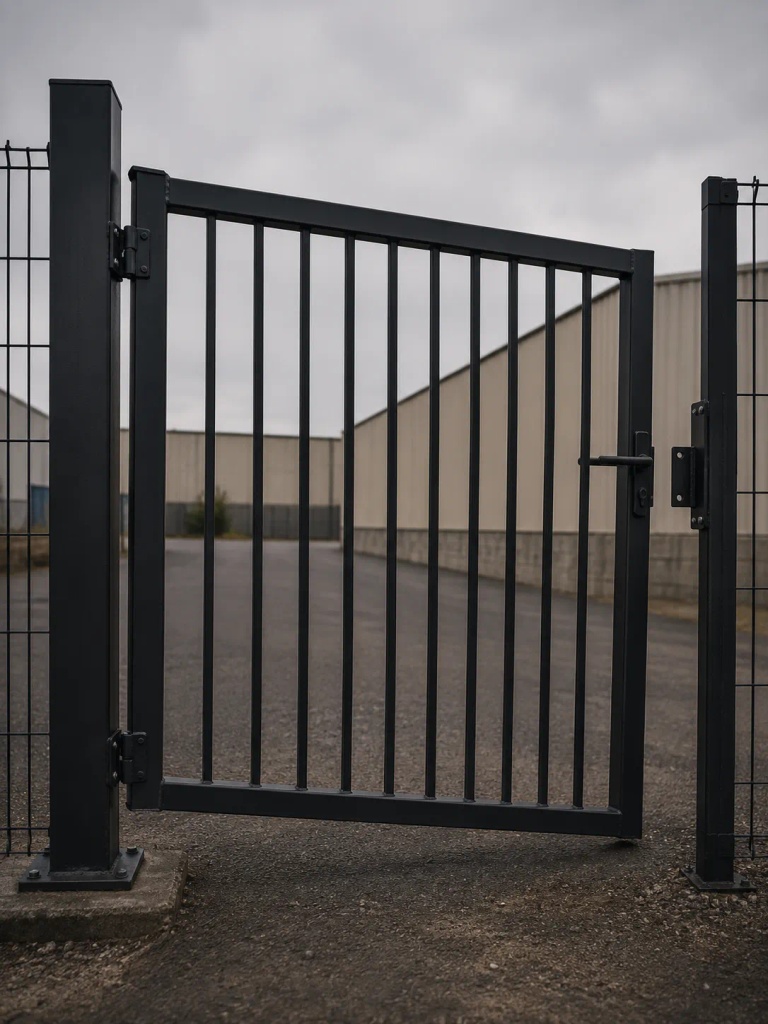

Gate Sag
ProblemUndersized gate posts or misaligned hinges can cause long-term sagging and latch failure.
Control Point
Verify the opening, hinge axis and gate-post reinforcement.
