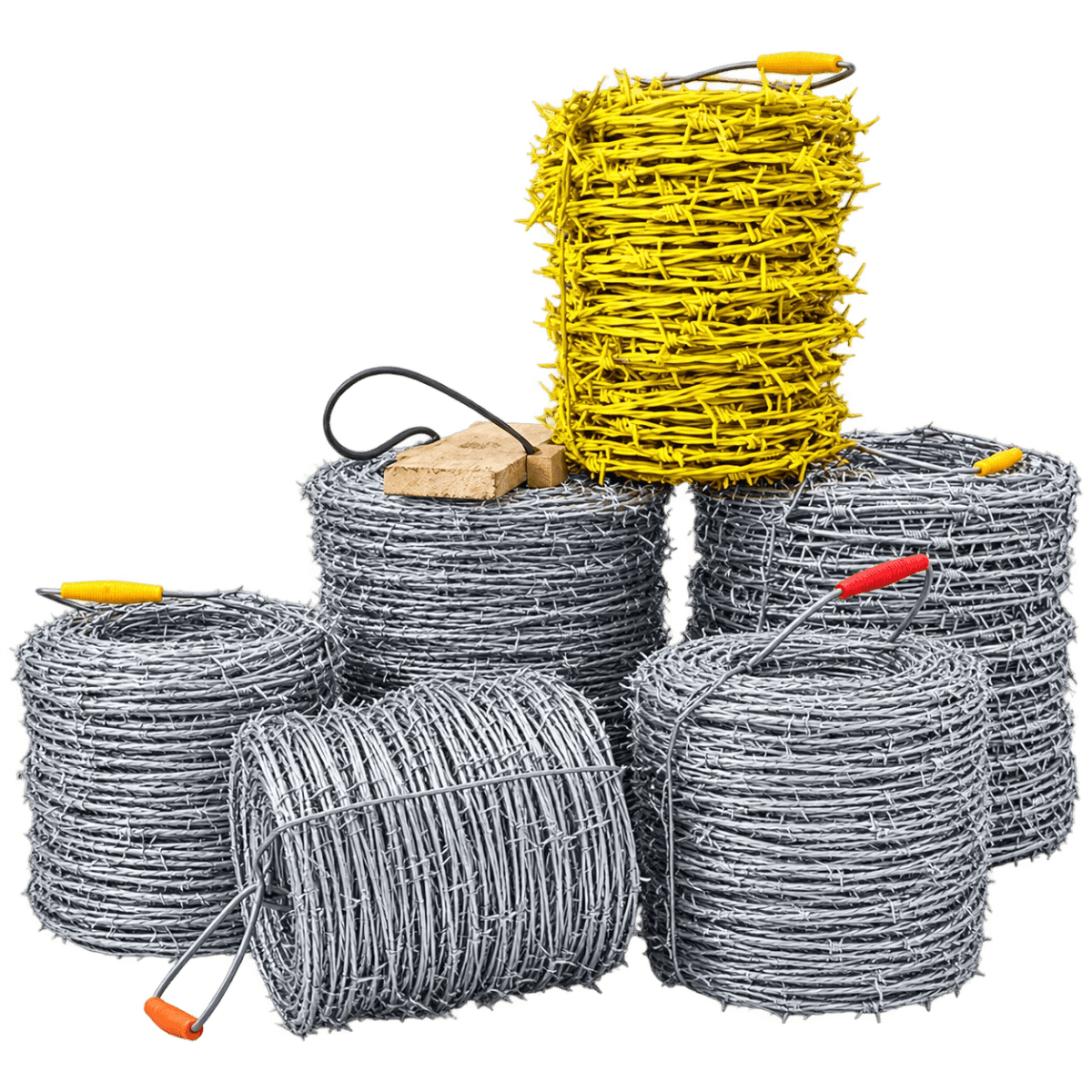

Barbed Wire
Custom barbed wire for fencing, boundary protection, agriculture, and security applications. Available in multiple twist types, wire gauges, coatings, coil lengths, and packing options for wholesale supply.
260+ tonsWire products output
per day
per day
3 timesQuality inspection
throughout
throughout
70+Country & region
exported
exported
CertificationsISO9001:2015 | TÜVRheinland Verified

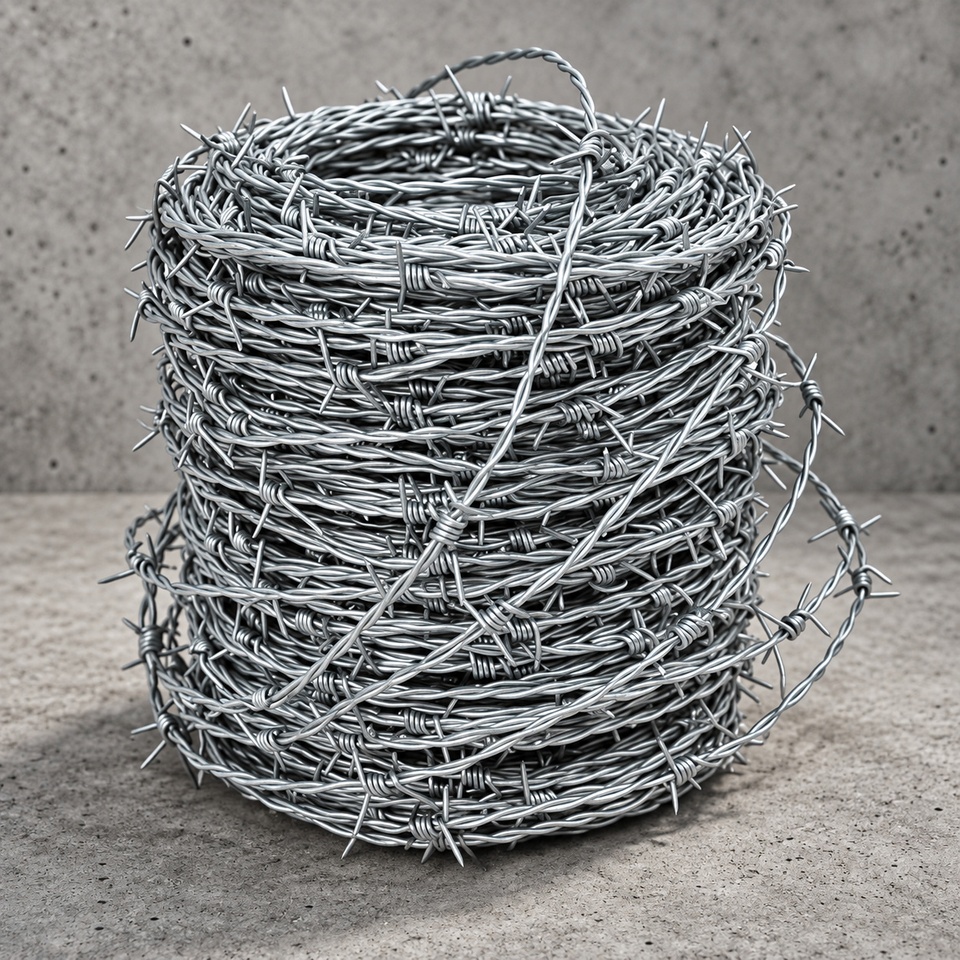

System Overview
Barbed Wire is manufactured from steel wire with regularly spaced sharp barbs twisted around the line wires, providing an economical and effective solution for boundary and perimeter protection. TIMEON supplies single twisted, double twisted, and traditional twisted types, with electro galvanized, hot-dip galvanized, and PVC-coated finishes available for different environments and project requirements.
- Structure:
- Single, double, or traditional twisted barbed wire
- Material:
- Steel wire
- Finish:
- Electro galvanized, hot-dip galvanized, or PVC coated
- Applications:
- Pasture boundaries, farms, highways, airports, and perimeter security

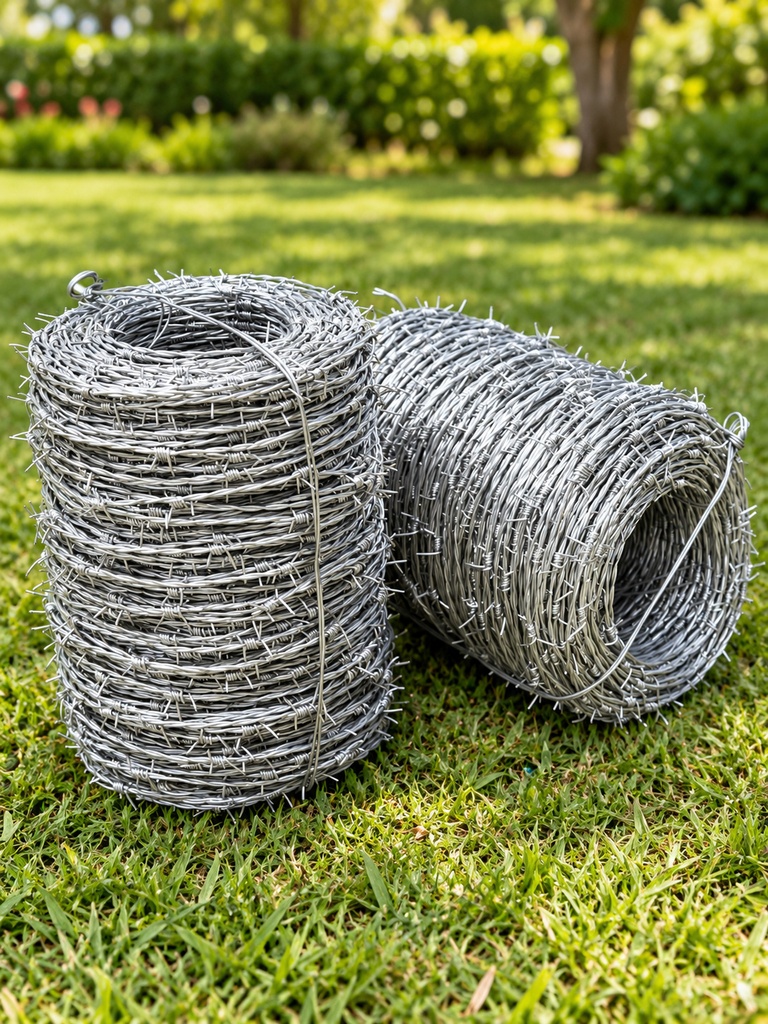

Specifications
Barbed Wire is available in galvanized and PVC/PE-coated options with multiple wire gauges, barb spacings, coil weights, roll lengths, and weave types. Specifications can be selected according to fencing, agricultural, and perimeter security requirements.
Barbed Wire Specifications
| Specification | Available Range |
|---|---|
| Galvanized Barbed Wire | |
| Type | Electro Galvanized / Hot-Dipped Galvanized |
| Wire Gauge (SWG) | 10# × 12# 12# × 12# 12# × 14# 14# × 14# 14# × 16# 16# × 16# 16# × 18# |
| Barb Distance | 3"–6" |
| Barb Length | 14–24mm |
| PVC/PE Coated Barbed Wire | |
| Before Coating | 1.0–3.5mm |
| After Coating | 1.4–4.0mm |
| Before Coating Gauge | BWG11#–20# / SWG11#–20# |
| After Coating Gauge | BWG8#–17# / SWG8#–17# |
| PVC/PE Coating Thickness | 0.4–0.6mm |
| Different colors or lengths available on request | |
| Other Specifications | |
| Zinc Coating | 40–60g/m², 8–20g/m², >100g/m² |
| Coil Weight | 5–50kg |
| Roll Length | 100m, 200m, 350m, 400m, 500m |
| Breaking Load (Rupture) | 250KGF, 350KGF |
| Weave Types | double twist barbed wire traditional twist barbed wire single strand barbed wire |

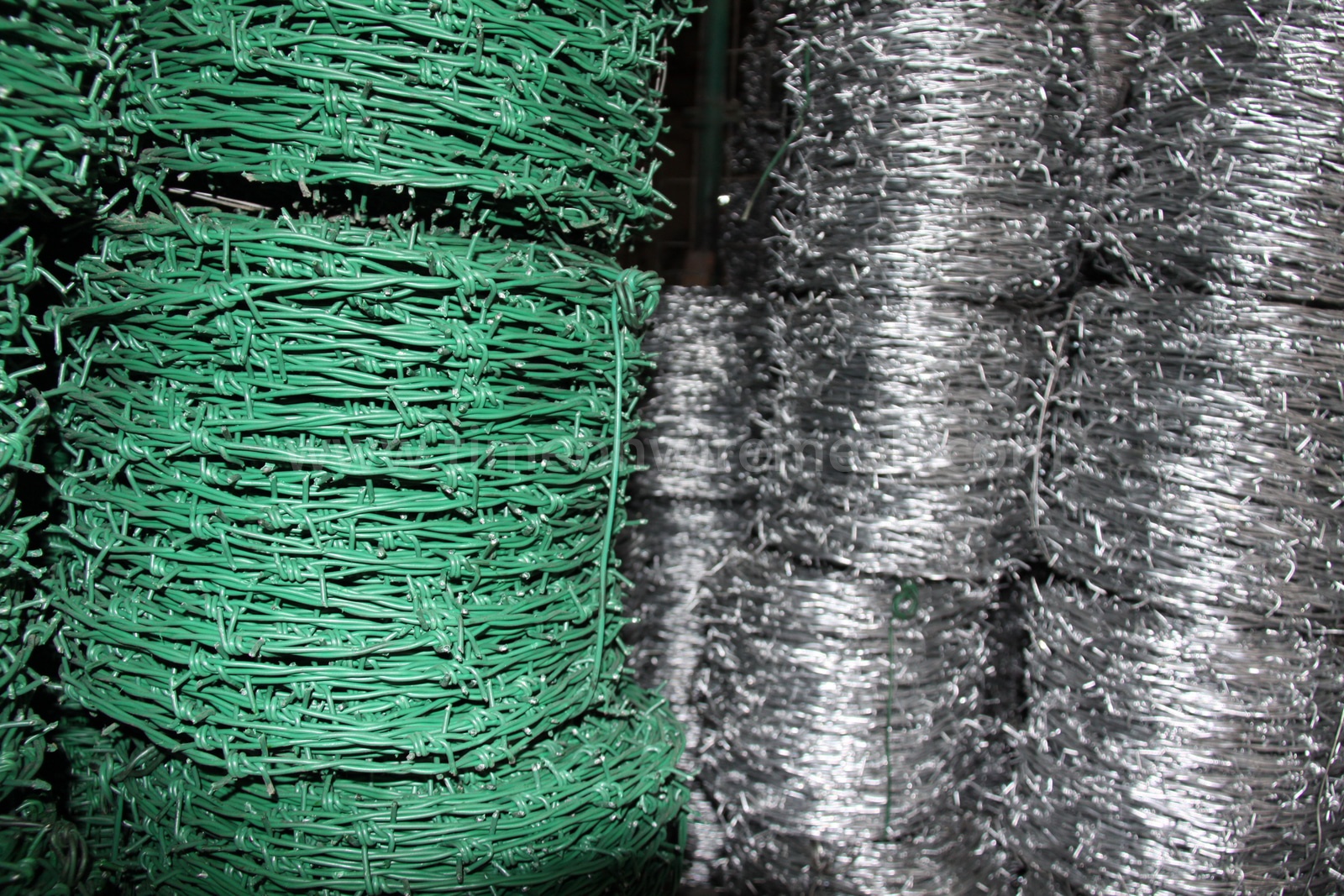

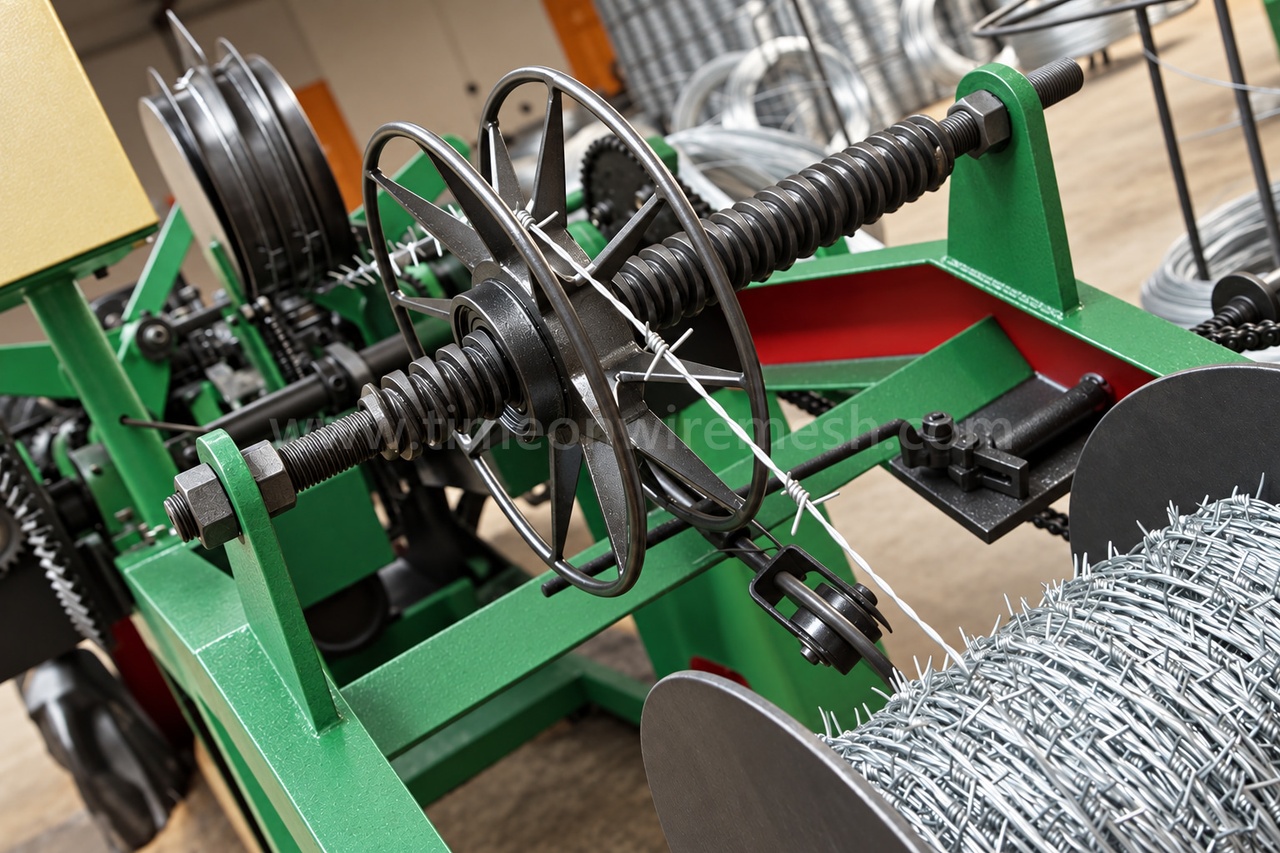

Visual Details
Recommended Applications

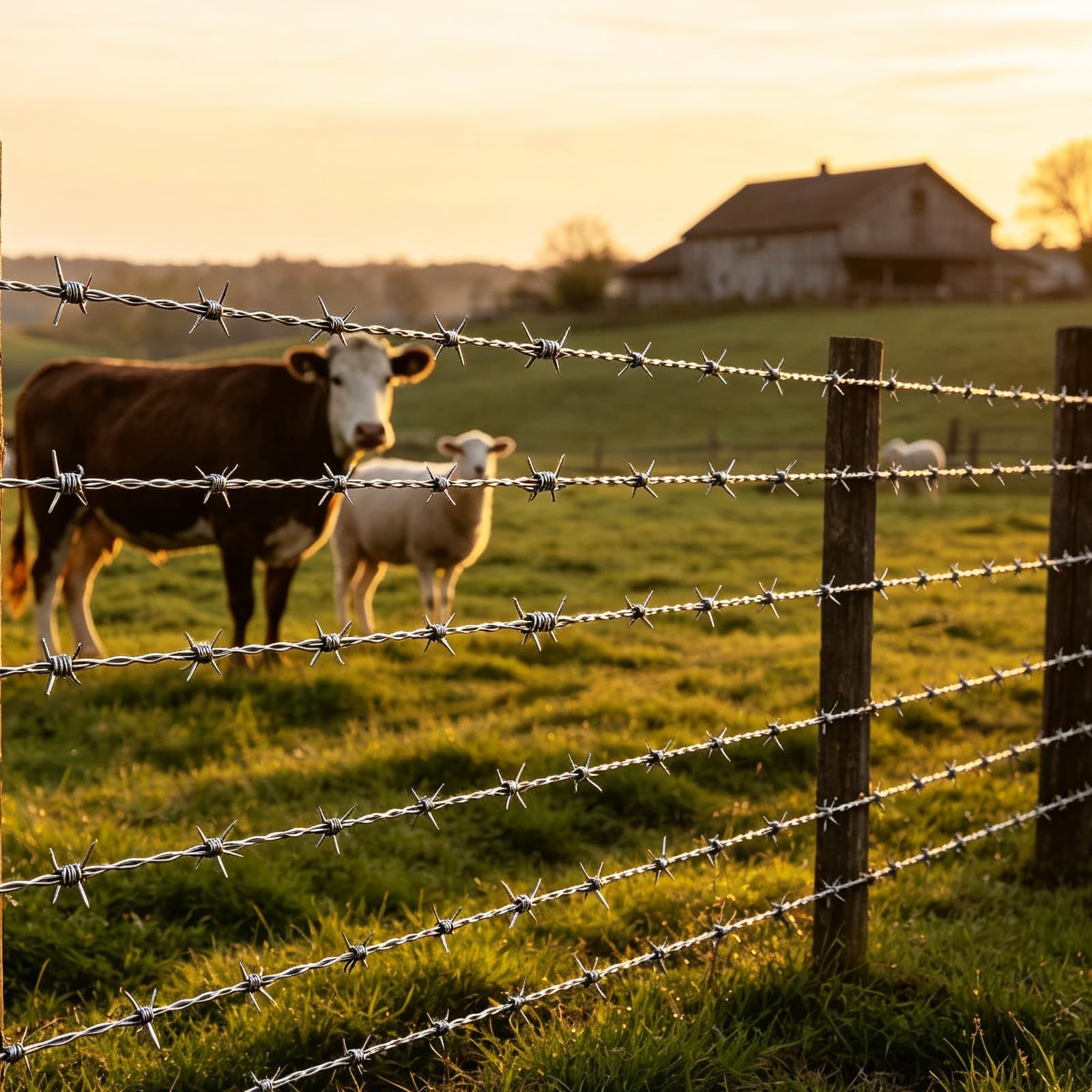

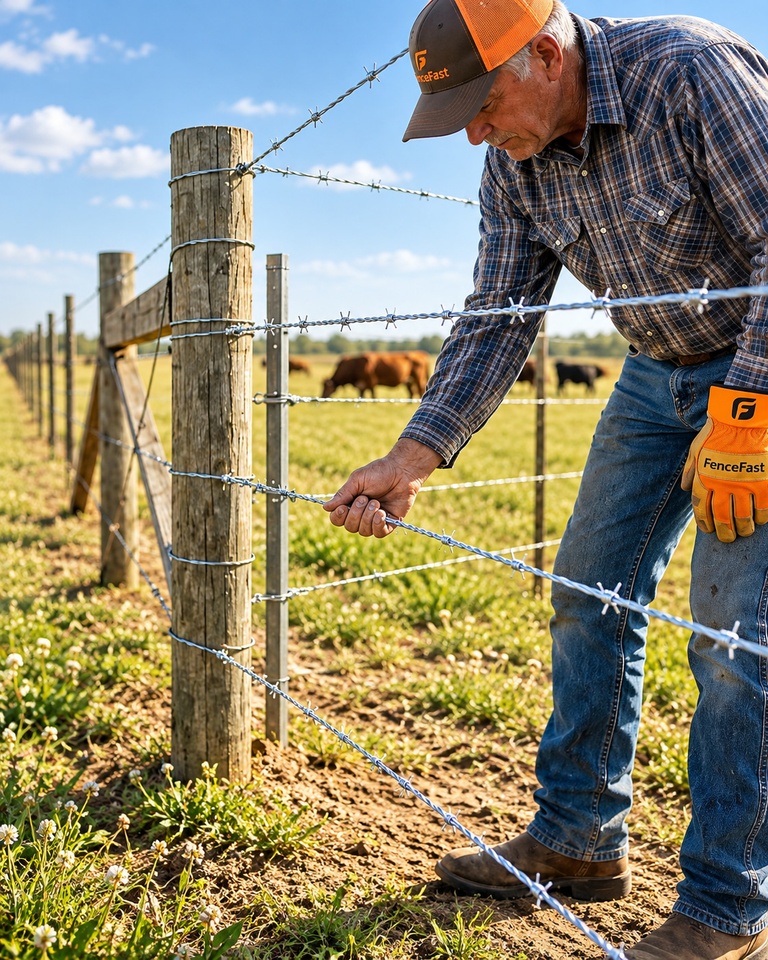

Farm Boundary

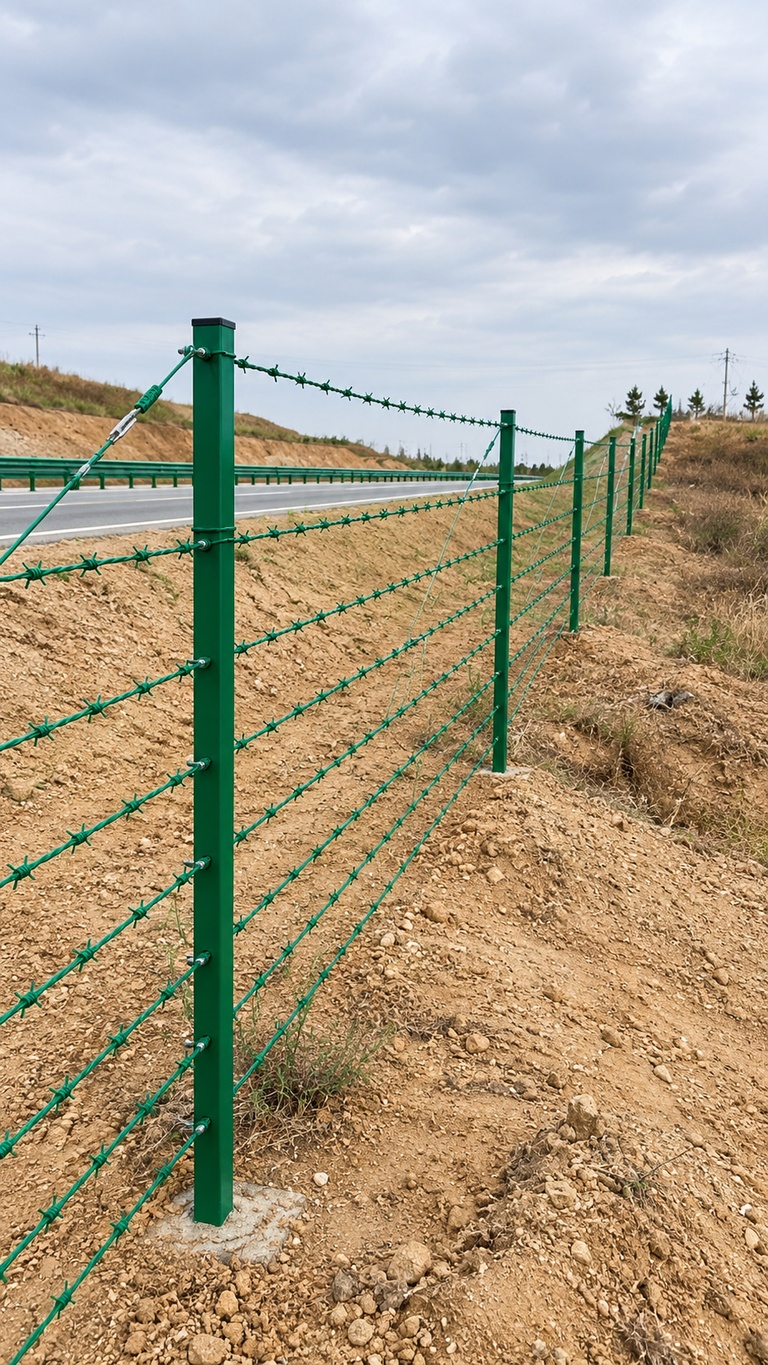

Highway Protection

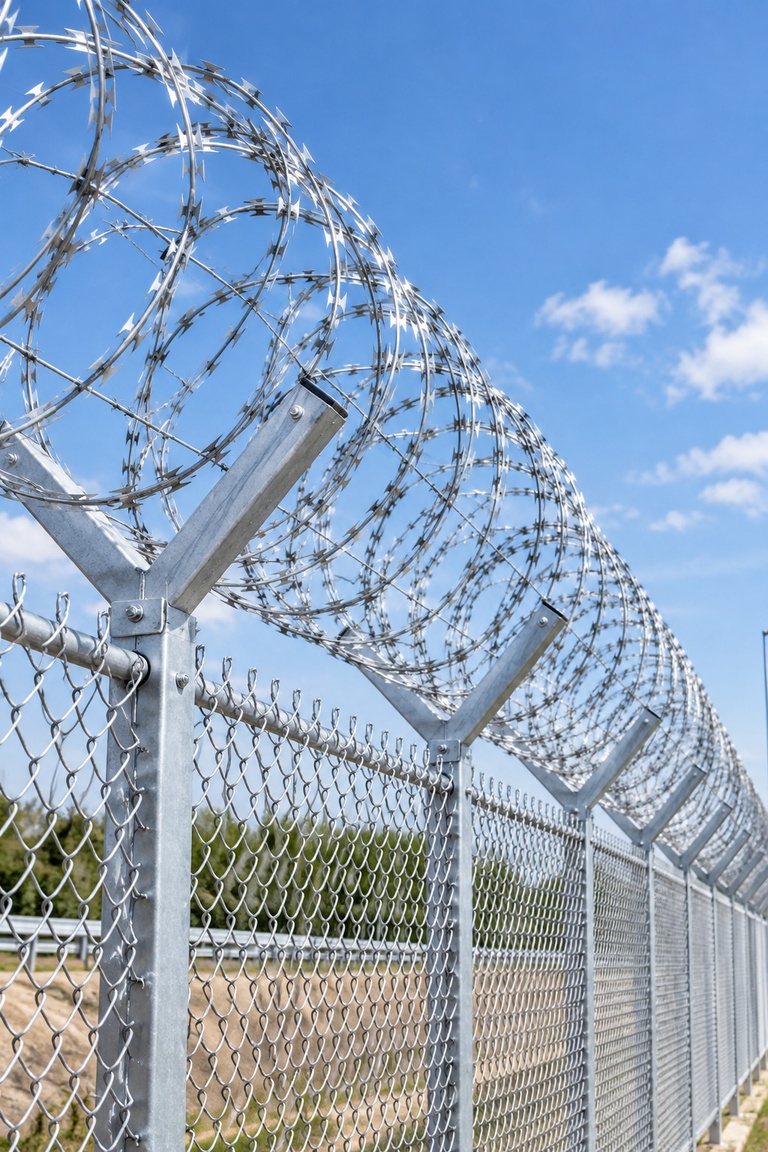

Perimeter Security
Recommended Products
Recommended Products
Explore related solutions for similar applications and project requirements.
Manufacturing Capacity
Our manufacturing base is located in Anping County, Hengshui City, Hebei Province, China, a globally recognized center for wire mesh production.
MANUFACTURING BASE
100,000m²
ANPING COUNTY, HEBEI, CHINA
Advanced manufacturing equipment and experienced technical teams support standard product supply and project-based customization.
EXPERIENCE
20+YEARS
EXPORT EXPERIENCE
Supporting projects across global markets.
WORKFORCE
200+EMPLOYEES
SKILLED WORKFORCE
Production, inspection and delivery teams.
